P-601.10
PiezoMove linear actuator with guides; PICMA® piezo actuator drive; 100 µm travel range (open loop); connecting wires; 0.3 m cable length

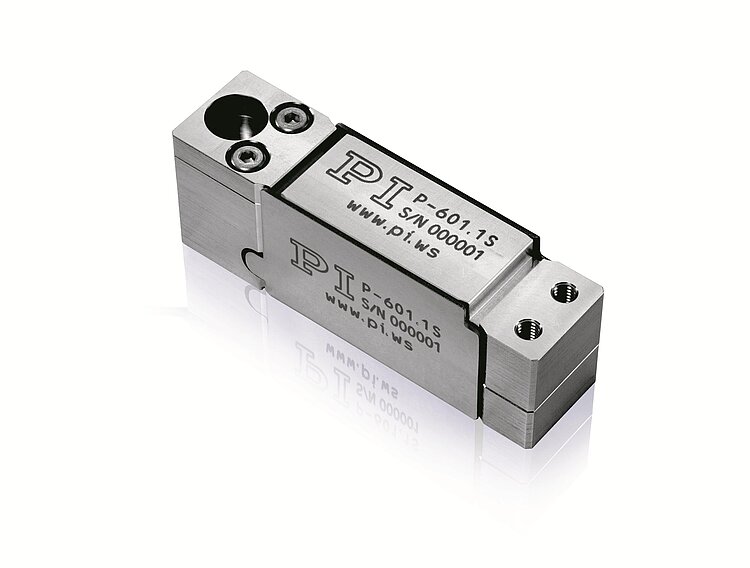

P-601 PiezoMove Linear Actuator with Guides
With Optional Position Sensor
- Flexure guides for linear motion with minimum tip and tilt
- Travel ranges to 400 µm
- Resolution to 0.2 nm
- Available with integrated position sensors
- Outstanding lifetime due to PICMA® piezo actuators
- Ideal for OEM applications in optics, medical technology, biotechnology, and microfluidics
- Customized versions with longer travel range, shorter response time or nonmagnetic

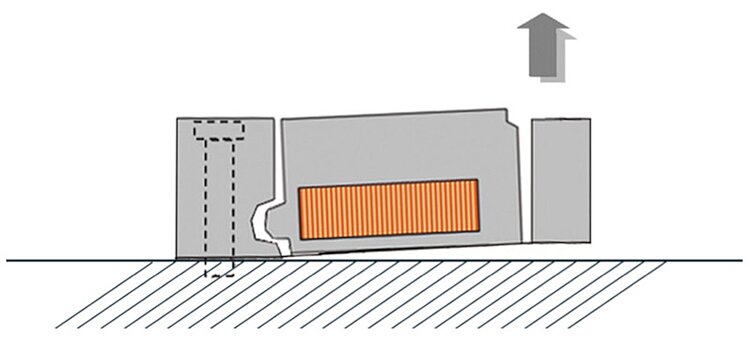

Direction of motion of the P-601. The flexure guides prevent tilt at the output.

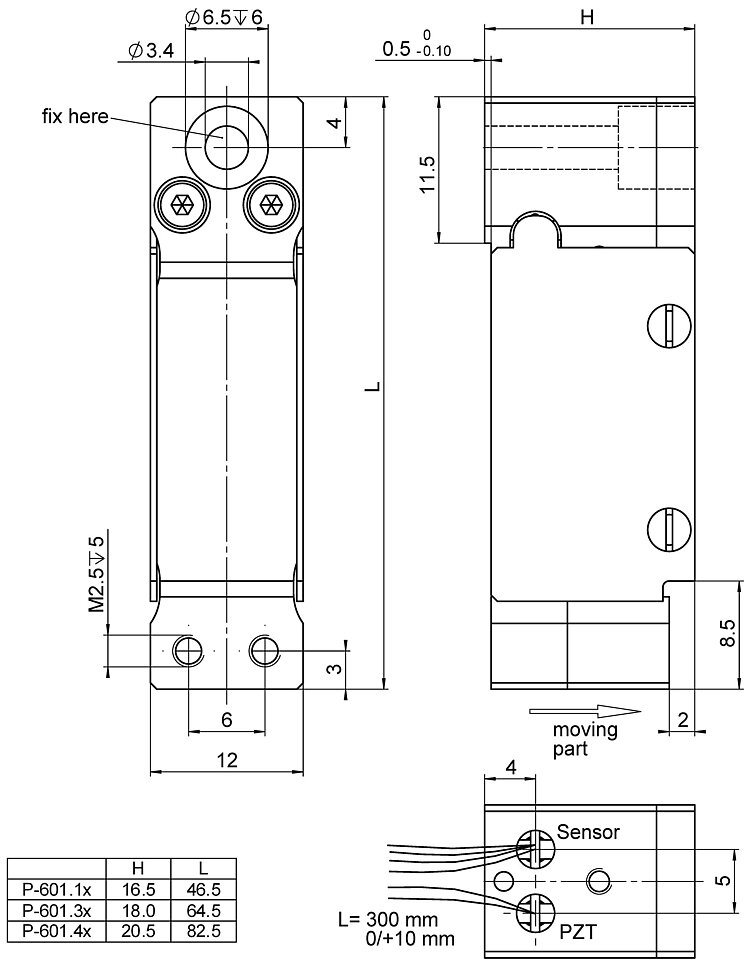

P-601, dimensions in mm
P-601 PiezoMove Linear Actuator with Guides
제품 설명
사양
다운로드
견적 / 주문
Application fields
- Nanopositioning
- High-speed switching
- Patch clamp
- Microdispensing
- Adaptive systems technology / automation
- Photonics / integrated optics
- Biotechnology
Outstanding lifetime thanks to PICMA® piezo actuators
The PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.
High guiding accuracy due to zero-play flexure guides
Flexure guides are free of maintenance, friction, and wear, and do not require lubrication. Their stiffness allows high load capacity and they are insensitive to shock and vibration. They work in a wide temperature range.
Specifications
Specifications
| Motion | P-601.10 | P-601.10L | P-601.1S | P-601.1SL | P-601.30 | P-601.30L | P-601.3S | P-601.3SL | P-601.40 | P-601.40L | P-601.4S | P-601.4SL | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Active axes | Z | Z | Z | Z | Z | Z | Z | Z | Z | Z | Z | Z | |
| Travel range in Z, open loop, at -20 to 120 V | 100 µm | 100 µm | 100 µm | 100 µm | 250 µm | 250 µm | 250 µm | 250 µm | 400 µm | 400 µm | 400 µm | 400 µm | +20 / -0 % |
| Travel range in Z | 100 µm | 100 µm | 250 µm | 250 µm | 400 µm | 400 µm | |||||||
| Linearity error in Z | 0.1 % | 0.1 % | 0.3 % | 0.3 % | 0.3 % | 0.3 % | typ. | ||||||
| Positioning | P-601.10 | P-601.10L | P-601.1S | P-601.1SL | P-601.30 | P-601.30L | P-601.3S | P-601.3SL | P-601.40 | P-601.40L | P-601.4S | P-601.4SL | Tolerance |
| Resolution in Z, open loop | 0.2 nm | 0.2 nm | 0.2 nm | 0.2 nm | 0.3 nm | 0.3 nm | 0.3 nm | 0.3 nm | 0.4 nm | 0.4 nm | 0.4 nm | 0.4 nm | typ. |
| Unidirectional repeatability in Z | ± 8 nm | ± 8 nm | ± 10 nm | ± 10 nm | ± 30 nm | ± 30 nm | typ. | ||||||
| Integrated sensor | SGS, indirect position measuring | SGS, indirect position measuring | SGS, indirect position measuring | SGS, indirect position measuring | SGS, indirect position measuring | SGS, indirect position measuring | |||||||
| System resolution in Z | 2 nm | 2 nm | 6 nm | 6 nm | 12 nm | 12 nm | |||||||
| Drive Properties | P-601.10 | P-601.10L | P-601.1S | P-601.1SL | P-601.30 | P-601.30L | P-601.3S | P-601.3SL | P-601.40 | P-601.40L | P-601.4S | P-601.4SL | Tolerance |
| Drive type | PICMA® | PICMA® | PICMA® | PICMA® | PICMA® | PICMA® | PICMA® | PICMA® | PICMA® | PICMA® | PICMA® | PICMA® | |
| Electrical capacitance in Z | 1.5 µF | 1.5 µF | 1.5 µF | 1.5 µF | 3.1 µF | 3.1 µF | 3.1 µF | 3.1 µF | 4.6 µF | 4.6 µF | 4.6 µF | 4.6 µF | ±20 % |
| Mechanical Properties | P-601.10 | P-601.10L | P-601.1S | P-601.1SL | P-601.30 | P-601.30L | P-601.3S | P-601.3SL | P-601.40 | P-601.40L | P-601.4S | P-601.4SL | Tolerance |
| Stiffness in Z | 0.8 N/µm | 0.8 N/µm | 0.8 N/µm | 0.8 N/µm | 0.38 N/µm | 0.38 N/µm | 0.38 N/µm | 0.38 N/µm | 0.28 N/µm | 0.28 N/µm | 0.28 N/µm | 0.28 N/µm | ±20 % |
| Resonant frequency in Z, unloaded | 750 Hz | 750 Hz | 750 Hz | 750 Hz | 440 Hz | 440 Hz | 440 Hz | 440 Hz | 350 Hz | 350 Hz | 350 Hz | 350 Hz | ±20 % |
| Resonant frequency in Z, under load with 30 g | 620 Hz | 620 Hz | 620 Hz | 620 Hz | 350 Hz | 350 Hz | 350 Hz | 350 Hz | 290 Hz | 290 Hz | 290 Hz | 290 Hz | ±20 % |
| Permissible push force in X | 30 N | 30 N | 30 N | 30 N | 30 N | 30 N | 30 N | 30 N | 30 N | 30 N | 30 N | 30 N | max. |
| Permissible push force in Y | 30 N | 30 N | 30 N | 30 N | 30 N | 30 N | 30 N | 30 N | 30 N | 30 N | 30 N | 30 N | max. |
| Permissible push force in Z | 30 N | 30 N | 30 N | 30 N | 20 N | 20 N | 20 N | 20 N | 15 N | 15 N | 15 N | 15 N | max. |
| Permissible pull force in Z | 10 N | 10 N | 10 N | 10 N | 10 N | 10 N | 10 N | 10 N | 10 N | 10 N | 10 N | 10 N | max. |
| Guide | Flexure guide with lever amplification | Flexure guide with lever amplification | Flexure guide with lever amplification | Flexure guide with lever amplification | Flexure guide with lever amplification | Flexure guide with lever amplification | Flexure guide with lever amplification | Flexure guide with lever amplification | Flexure guide with lever amplification | Flexure guide with lever amplification | Flexure guide with lever amplification | Flexure guide with lever amplification | |
| Mass without cable | 50 g | 50 g | 50 g | 50 g | 80 g | 80 g | 80 g | 80 g | 110 g | 110 g | 110 g | 110 g | ±5 % |
| Material | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | Stainless steel | |
| Miscellaneous | P-601.10 | P-601.10L | P-601.1S | P-601.1SL | P-601.30 | P-601.30L | P-601.3S | P-601.3SL | P-601.40 | P-601.40L | P-601.4S | P-601.4SL | Tolerance |
| Operating temperature range | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | -20 to 80 °C | |
| Connector | Stranded wires, PTFE isolated, AWG 32, Ø 0.49 mm | LEMO FFS.00.250.CTCE24 | Stranded wires, PTFE isolated, AWG 32, Ø 0.49 mm | LEMO FFS.00.250.CTCE24 | Stranded wires, PTFE isolated, AWG 32, Ø 0.49 mm | LEMO FFS.00.250.CTCE24 | Stranded wires, PTFE isolated, AWG 32, Ø 0.49 mm | LEMO FFS.00.250.CTCE24 | Stranded wires, PTFE isolated, AWG 32, Ø 0.49 mm | LEMO FFS.00.250.CTCE24 | Stranded wires, PTFE isolated, AWG 32, Ø 0.49 mm | LEMO FFS.00.250.CTCE24 | |
| Cable length | 0.3 m | 1.5 m | 0.3 m | 1.5 m | 0.3 m | 1.5 m | 0.3 m | 1.5 m | 0.3 m | 1.5 m | 0.3 m | 1.5 m | |
| Recommended controllers / drivers | E-610, E-625, E-831 | E-610, E-625, E-831 | E-610, E-625, E-831 | E-610, E-625, E-831 | E-610, E-625, E-831 | E-610, E-625, E-831 | E-610, E-625, E-831 | E-610, E-625, E-831 | E-610, E-625, E-831 | E-610, E-625, E-831 | E-610, E-625, E-831 | E-610, E-625, E-831 | |
| Sensor connector | Stranded wires, PTFE isolated, AWG 36 | LEMO FFA.0S.304.CLAC32 | Stranded wires, PTFE isolated, AWG 36 | LEMO FFA.0S.304.CLAC32 | Stranded wires, PTFE isolated, AWG 36 | LEMO FFA.0S.304.CLAC32 |
The resolution of the system is only limited by the noise of the amplifier and measuring technology because PI piezo actuators are free of friction.
Downloads
Product Note
Product Note
Product Change Notification Piezo Actuator Driven Products
버전 / 날짜
2021-04-19
pdf - 377 KB
영어
Datasheet
Documentation
3D Models
3D Models
P-601 3-D model
zip - 588 KB
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
P-601.10L
PiezoMove linear actuator with guides; PICMA® piezo actuator drive; 100 µm travel range (open loop); LEMO connector; 1.5 m cable length
P-601.1S
PiezoMove linear actuator with guides; PICMA® piezo actuator drive; 100 µm travel range; SGS, indirect position measuring; connecting wires; 0.3 m cable length
P-601.1SL
PiezoMove linear actuator with guides; PICMA® piezo actuator drive; 100 µm travel range; SGS, indirect position measuring; LEMO connectors; 1.5 m cable length
P-601.30
PiezoMove linear actuator with guides; PICMA® piezo actuator drive; 250 µm travel range (open loop); connecting wires; 0.3 m cable length
P-601.30L
PiezoMove linear actuator with guides; PICMA® piezo actuator drive; 250 µm travel range (open loop); LEMO connector; 1.5 m cable length
P-601.3S
PiezoMove linear actuator with guides; PICMA® piezo actuator drive; 250 µm travel range; SGS, indirect position measuring; connecting wires; 0.3 m cable length
P-601.3SL
PiezoMove linear actuator with guides; PICMA® piezo actuator drive; 250 µm travel range; SGS, indirect position measuring; LEMO connectors; 1.5 m cable length
P-601.40
PiezoMove linear actuator with guides; PICMA® piezo actuator drive; 400 µm travel range (open loop); connecting wires; 0.3 m cable length
P-601.40L
PiezoMove linear actuator with guides; PICMA® piezo actuator drive; 400 µm travel range (open loop); LEMO connector; 1.5 m cable length
P-601.4S
PiezoMove linear actuator with guides; PICMA® piezo actuator drive; 400 µm travel range; SGS, indirect position measuring; connecting wires; 0.3 m cable length
P-601.4SL
PiezoMove linear actuator with guides; PICMA® piezo actuator drive; 400 µm travel range; SGS, indirect position measuring; LEMO connectors; 1.5 m cable length
Ask an engineer!
Quickly receive an answer to your question by email or phone from a local PI sales engineer.
Compatible Electronics
Compatible Accessories
Related Products
기술
PICMA® Technology
Highly reliable and extended lifetime through the patented manufacturing process for multilayer actuators.
Flexure Guiding Systems
Flexure guides from PI have proven their worth in nanopositioning. They guide the piezo actuator and ensure a straight motion without tilting or lateral offset.
