피에조 트랜스듀서 및 액추에이터

피에조 초음파 트랜스듀서는 디스크, 플레이트 또는 튜브와 같은 다채로운 형태와 다양한 성능 수준으로 제공됩니다. 다양한 피에조 세라믹 소재, 전극 및 조립 기술을 사용하여 응용 사례 요구 사항에 맞게 조정할 수 있습니다. 이는 유량 측정, 구조 모니터링 및 여러 의료 분야와 같이 초음파가 필요한 곳이라면 어디든 존재합니다.

피에조 액추에이터는 다양한 힘 등급과 최대 수백 마이크로미터의 변위에 대해 스택형 버전과 멀티레이어 버전으로 제공되며, 피에조 벤딩 액추에이터는 밀리미터 수준까지 구현할 수 있습니다. 밀리초 응답 시간, 높은 역동성과 같은 기본 기능과 거의 무한에 가까운 분해능이 결합되어 산업 생산이나 디스펜싱에서 초정밀 포지셔닝에 이르기까지 다양한 응용 분야에 필수적입니다.

PI Ceramic Plates

Piezoceramic Disks, Rods & Cylinders

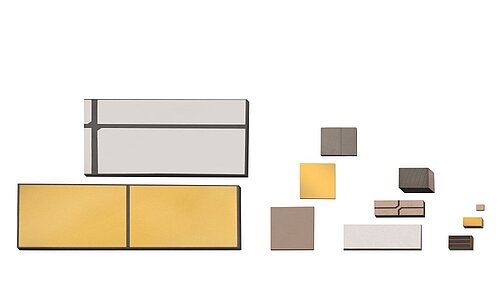

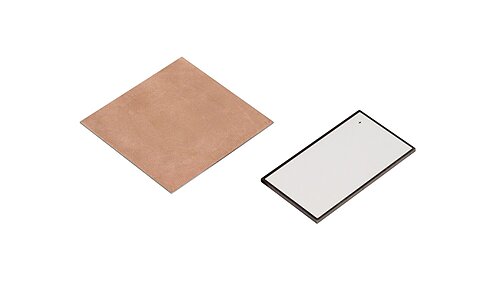

Piezoceramic Plates & Blocks

Piezoceramic Plates & Blocks

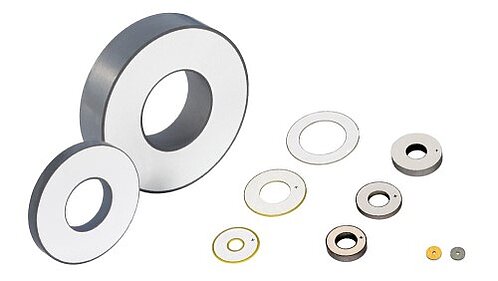

PI Ceramic Piezoceramic Rings

Piezoceramic Rings

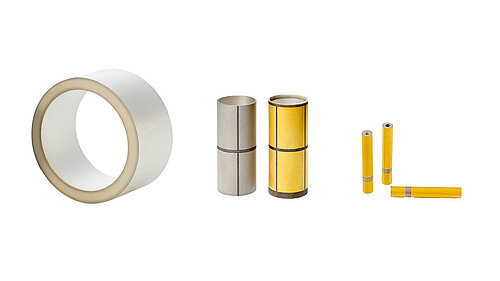

PI Ceramic Piezoceramic Tubes

Piezoceramic Tubes

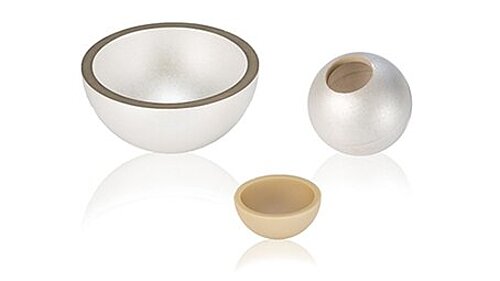

Piezoceramic Spheres & Hemispheres

Piezoceramic Spheres & Hemispheres

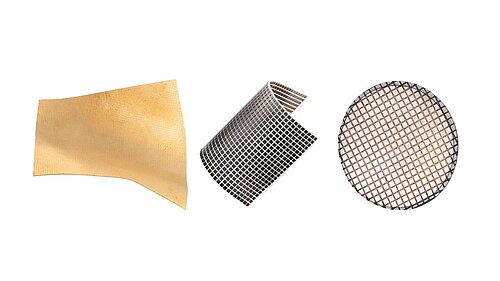

PI Ceramic Flexible Composites

Piezoceramic Composites

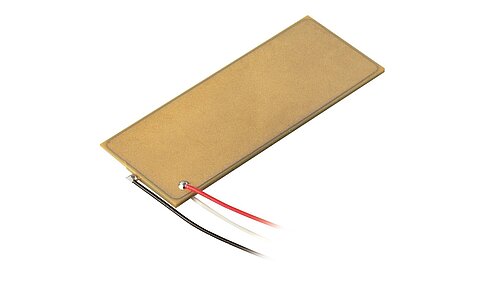

Piezoceramic Bending Elements

Piezoceramic Bending Elements

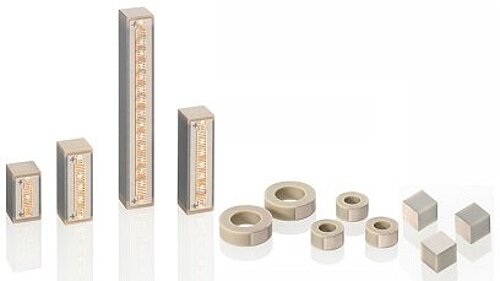

PICMA® 피에조 리니어 액추에이터

PICMA® 피에조 리니어 액추에이터

올세라믹 단열재를 사용한 멀티레이어 피에조 액추에이터

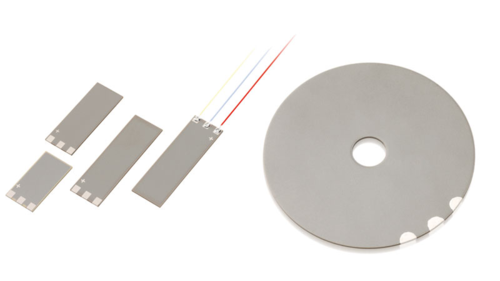

PICMA® Piezo Bender Actuators

PICMA® Piezo Bender Actuators

PICA Piezoelectric Stack Actuators

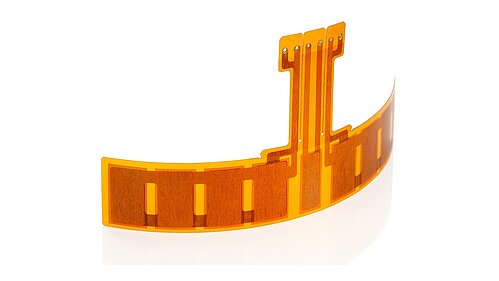

DuraAct Piezoelectric Transducers

DuraAct Piezoelectric Transducers

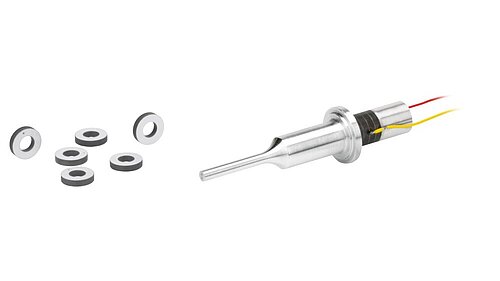

PI Ceramic Transducer Langevin Rings

Ultrasonic Transducers

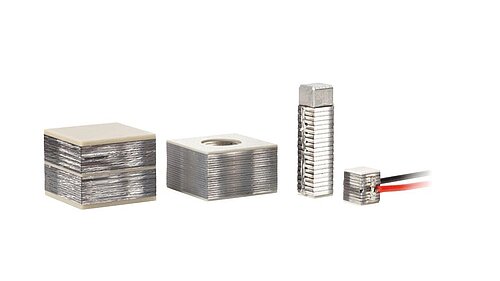

Picoactuator® Piezoelectric Crystal

Picoactuator® Piezoelectric Crystal

나노 포지셔닝 피에조 액추에이터

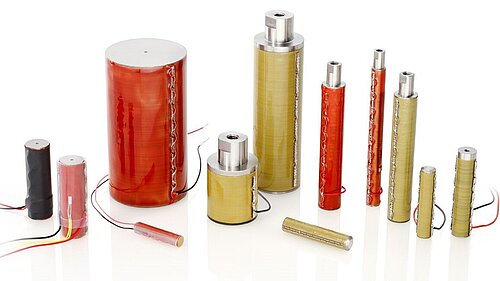

P-216 PICA Power Piezo Actuators

Preloaded Piezo Actuators (HVPZT) with Sensor Option
  • Travel range to 180µm
  • Push force to 4500N
  • Pull force to 500N
  • Subnanometer resolution
  • For vacuum/ high temperature

P-845 Preloaded Piezo Actuators

For Very High Loads and Forces, with Position Sensor

P-844 Preloaded Piezo Actuators

For Very High Loads and Forces

P-840 Preloaded Piezo Actuators

Compact Actuators for High Loads and Forces

P-820 Preloaded Piezo Actuators

For Medium Loads and Forces

P-235 PICA Power Piezo Actuators

Preloaded High-Load Piezo Actuators (HVPZT) with Sensor Option
  • High Force
  • Travel range 180µm
  • Extremely high stiffness
  • Push force to 30000N
  • Pull force to 3500N

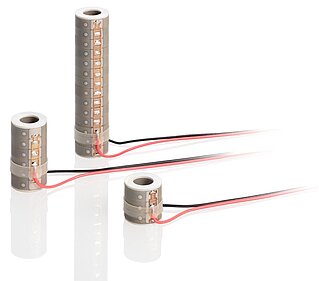

P-080 PICMA® Stack Multilayer Ring Actuator

With Inner Hole
  • Multilayer
  • Inner hole: preload/aperture
  • Superior lifetime
  • Microsecond response
  • Subnanometer resolution
