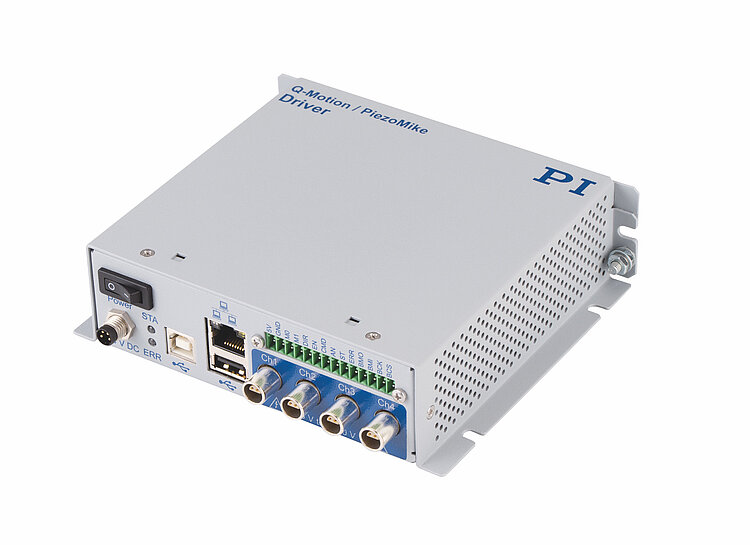

E-872.401 Q-Motion® Piezo Motor / PiezoMike Drive Electronics

Function

Driver electronics for Q-Motion® positioners and PiezoMike linear actuators; benchtop device

Drive type

Piezo inertia drive

Channels

4

scalable to 64 channels via external module (on request)

Supported functions

Full-step mode, linear mode (analog control)

Amplifier channels

1

drives one axis at a time, the switching between the drive channels is done via commands

Output voltage

0 to 100 V

Peak power

30 W

Output current / channel (<5 ms)

±650 mA

Communication interfaces

USB, Ethernet

Actuator connection

4 x LEMO connector, 3-pin

Digital inputs

TTL inputs for commanding and configuration

Digital output

Error status

Command set

PI General Command Set (GCS)

User software

PIMikroMove

Application programming interfaces

API for C / C++ / C# / VB.NET / MATLAB / Python, drivers for LabVIEW

Display and indicators

LED indicator for status and operation

Manual control

Joystick via USB

Operating temperature range

0 to 50 °C

Overtemperature protection

Deactivation at 75 °C

Dimensions

147 mm × 125 mm × 40 mm

Mass

0.46 kg

Operating voltage

24 V (power adapter in the scope of delivery)

Max. power consumption

35 W
