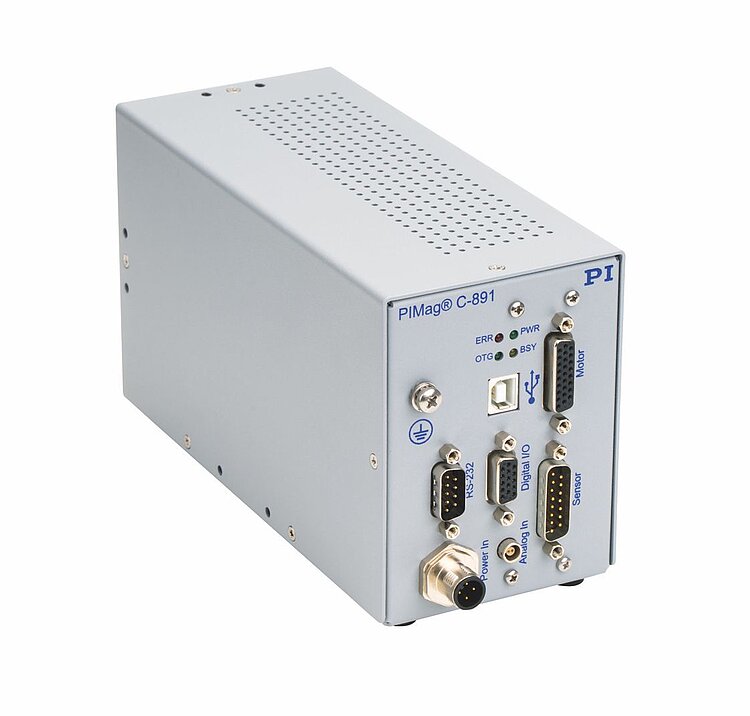

C-891.130300 PIMag® Motion Controller for Magnetic Direct Drives
1 Axis, for 3-Phase Linear Motors
- Output current 5 A
- 20-kHz control bandwidth
- Protection against overload, overcurrent, overtemperature
- Digital inputs and outputs for trigger and stop function
- USB interface for commanding and configuration
Digital motion controller for PIMag® linear motors
1 motor channel, 1 sensor channel. For three-phase linear motors with currents of 5 A per phase. Sine-commutated operation, field-oriented current control. Automatic commutation angles adjustment. PID controller for position and velocity.
Encoder inputs
Differential signal transmission for digital (A/B) or analog (sin/cos) encoder signals. Supports BiSS interface for absolute encoders. TTL inputs for limit and reference switches.
Extensive functionality
Protection for motor and motor driver due to protective shutdown and current limitation. Motor stop via external switch. Data recorder, wave generator, macros. Extensive software support, e.g., for NI LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.
Interfaces
USB and RS-232 for commanding. Digital inputs and outputs for automation. Analog input for recording an external sensor signal.
Specifications
Specifications
C-891.130300 | |
---|---|
Function | PIMag® motion controller for 3-phase linear motors |
Motor channels | 1 |
Sensor channels | 1 |
Supported functions | Point-to-point motion. Data recorder. Wave generator. Macros. Automatic adjustment of the commutation angle for 3-phase linear motors. |
Safety features | Motor stop via external switch. Overload protection of the motor driver. Overheat protection of the motor. Overcurrent protection of the system. |
Motion and control | C-891.130300 |
---|---|
Controller type | PID controller for position and velocity, parameter changing during operation |
Servo frequency | 20 kHz |
Profile Generator | Trapezoidal velocity profile, setting of maximum velocity and acceleration |
Encoder input | Sin/cos, A/B (TTL, differential), BiSS interface for absolute encoder |
Reference and limit switches | TTL |
Interfaces and operation | C-891.130300 |
---|---|
Communication interfaces | USB, RS-232 |
Motor connector | HD D-sub 26 (f) |
Sensor connector | D-sub 15 (m) |
I/O lines | HD D-sub 15 (f): 4 x digital input, 4 x digital output (TTL) LEMO EPG.00.302.NLN: Analog input -10 to 10 V |
Command set | PI General Command Set (GCS) |
User software | PIMikroMove |
Application programming interfaces | API for C / C++ / C# / VB.NET / MATLAB / Python, drivers for NI LabVIEW |
Miscellaneous | C-891.130300 |
---|---|
Operating voltage | 48 V DC or 24 V DC |
Max. current consumption | 10 A (load dependent) |
Power adapter 48 V | Not included in the scope of delivery; must be supplied by the user |
Power adapter 24 V | Included in the scope of delivery: Desktop power adapter, primary: 100-240 V AC, secondary: 24 V DC 120 W M12 |
Operating temperature range | 5 to 40 °C |
Mass | 1.0 kg |

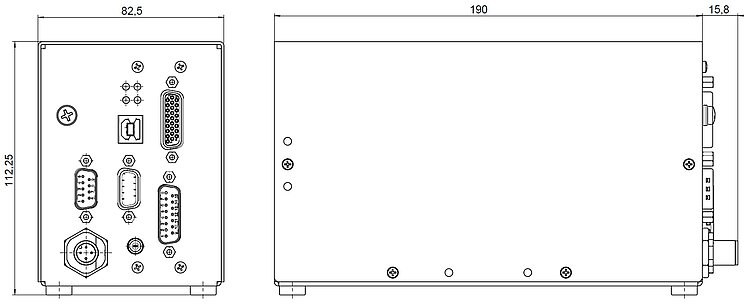

Dimensions | 190 mm × 83 mm × 110 mm (with rubber feet and connection for supply voltage: 206 mm x 83 mm x 112 mm) |
