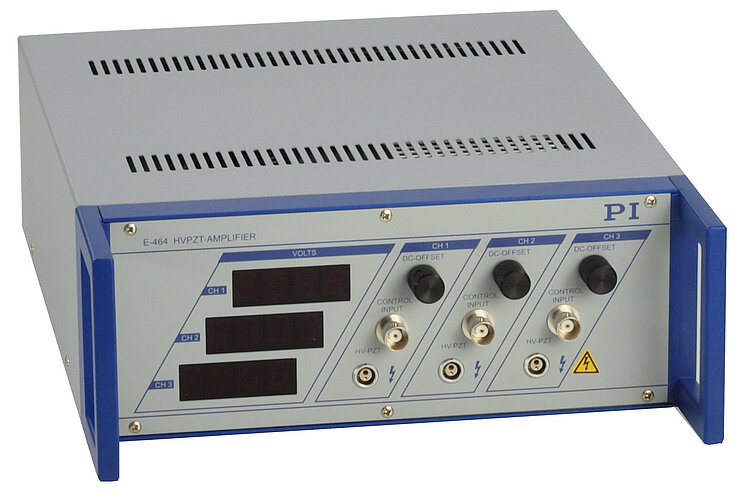

E-464 PICA Piezo Amplifier
For Piezo Systems and Actuators, up to 3 Channels
- 3 powerful channels
- Peak power 3 × 25 W
- Output voltage range 0 to 1100 V
- 3 LED displays
E-464 PICA Piezo Amplifier
제품 설명
사양
다운로드
견적 / 주문
Specifications
Specifications
Amplifier | E-464.00 |
---|---|
Output voltage | 0 to 1100 V |
Amplifier channels | 3 |
Average output power per channel | >3.5 W (max. 12 W for single-channel operation) |
Peak power per channel, <5 ms | 25 W |
Average output current per channel | >3.5 mA (max. 12 W for single-channel operation) |
Peak current per channel, <5 ms | 25 mA |
Amplifier bandwidth, small signal | 1 kHz |

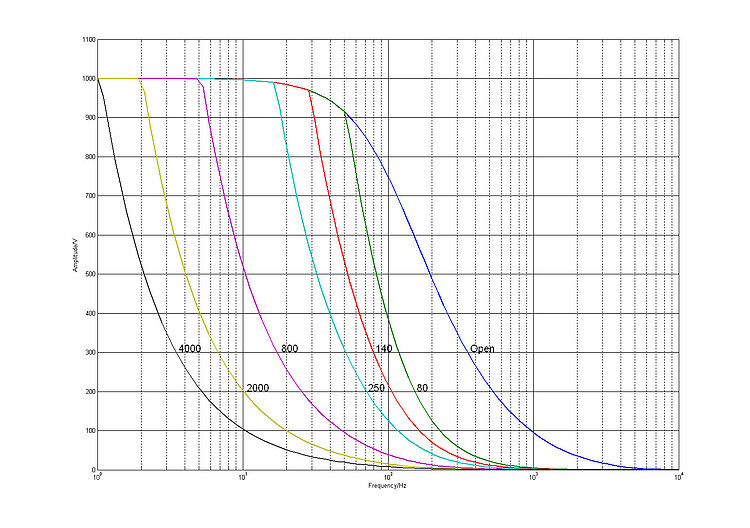

Amplifier bandwidth, large signal | 3.5 Hz (660 nF); 35 Hz (70 nF) |
Ripple, noise, 0 to 100 kHz | 5 mVrms <50 mVpp (100 nF) |
Current limitation | Short-circuit proof |
Voltage gain | 100 ±1 |
Input impedance | 100 kΩ |
Input voltage range | 0 to 11 V |
Downloads
Datasheet
Documentation
Documentation
User Manual PZ176
E-464 PICA Piezo Amplifier, 3 Channels
버전 / 날짜
2007-07-10
pdf - 306 KB
버전 / 날짜
2007-07-10
pdf - 334 KB
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
E-464.00
HVPZT piezo amplifier, 3 channels, 1100 V voltage range, benchtop device
