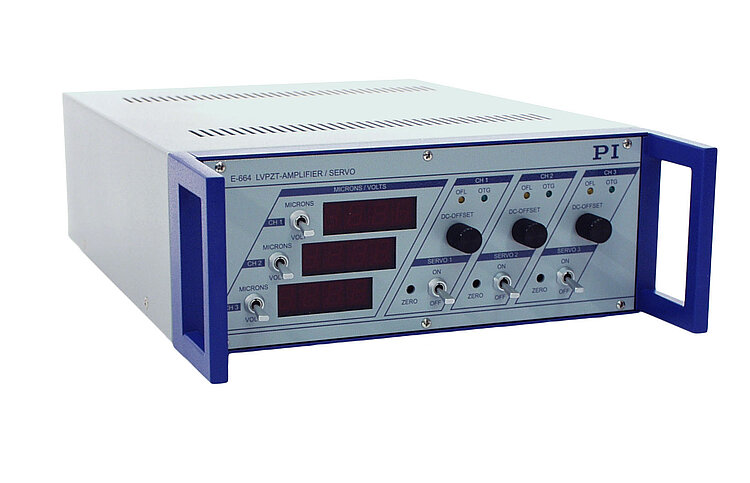

E-664 NanoCube® Piezo Controller

Function

Power amplifier & position servo controller for P-611.3S NanoCube® nanopositioning system

Axes

3

Controller type

P-I (analog), notch filter

Sensor type

SGS

Input voltage range

-2 to 12 V

Output voltage

-20 to 120 V

Peak power per channel, < 5 ms

14 W

Average output power / channel, >5 ms

6 W

Peak current / channel, <5 ms

140 mA

Average output current / channel, >5 ms

60 mA

Current limitation

Short-circuit proof

Voltage gain

10 ±0.1

Ripple, noise, 0 to 100 kHz

<1 mV_rms

Piezo / sensor connection

Sub-D 25 (f)

Analog input socket

3 × BNC (rear), I/O connector

I/O lines

14-pin socket for on-target and overflow status, control input and sensor monitor output

Display and indicators

3 × 3½ digits, LED

Operating temperature range

5 to 50°C

Overheat protection

Deactivation at 75°C

Dimensions

236 mm × 88 mm × 273 mm + handles

Mass

3 kg

Operating voltage

90 to 120 / 220 to 240 VAC, 50 to 60 Hz (linear power supply)

Max. power consumption

60 W
