F-603.4x Fiber Holders for P-616
NEW

F-603.4x Fiber Holders for P-616

Accessories

  • For fiber alignment with the P-616 NanoCube® nanopositioner
  • Fiber holders 10° and 90°
  • All holders incl. fiber optic ferrules 1.25 mm, 2.5 mm, and 3.2 mm
to content 견적 / 주문하기

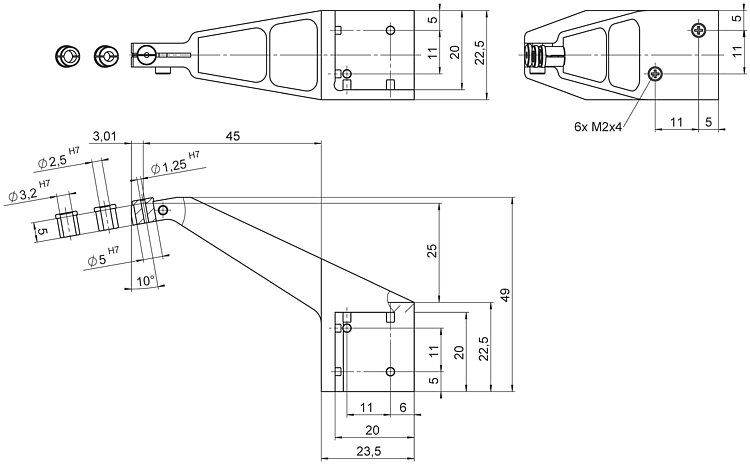

Fiber holder F-603.41, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

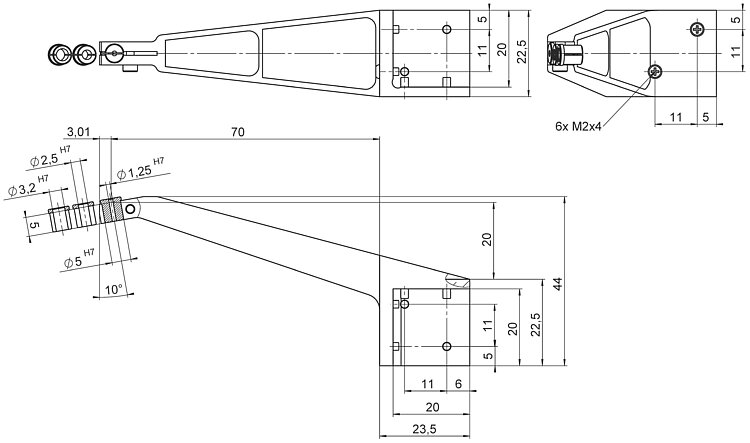

Fiber holder F-603.42, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

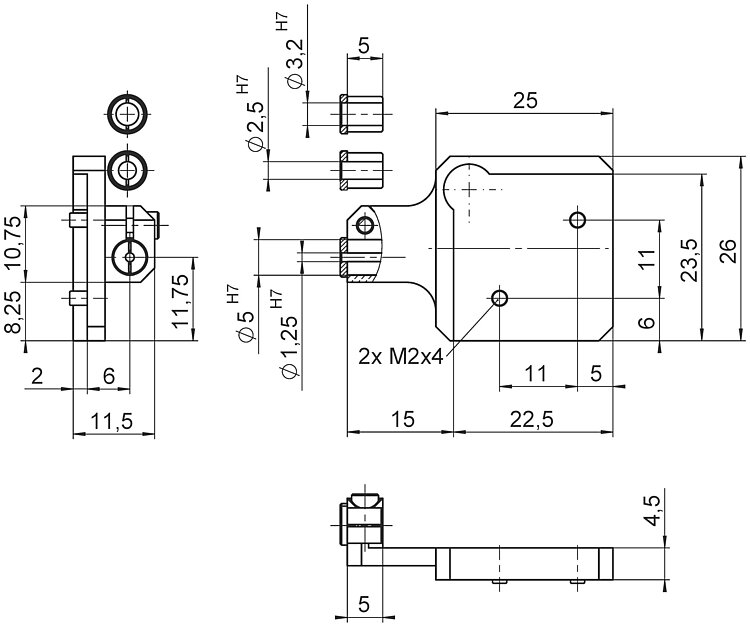

Fiber holder F-603.43, dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.
