C-815.VFxx Vacuum Feedthroughs

Interfaces Between Air Side and High Vacuum (HV) or Ultrahigh Vacuum (UHV)

Accessories for positioning stages suitable for vacuum
Closure and port for vacuum chambers
Vacuum compatible to 10^-9 hPa

견적 / 주문하기

C-815.VFU1

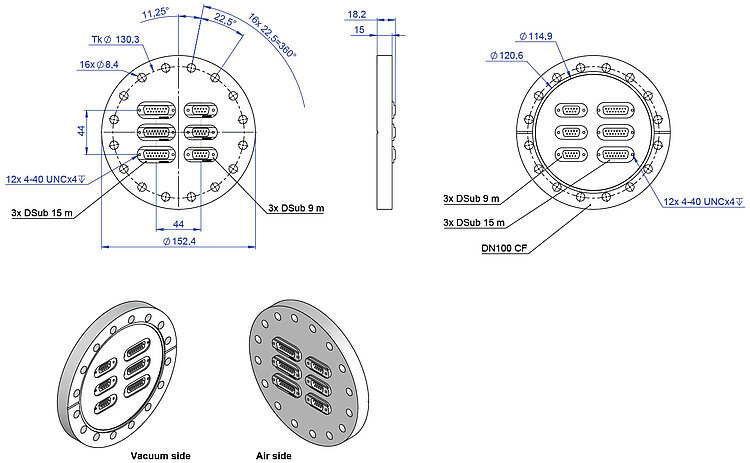

C-815.VFU33, dimensions in mm

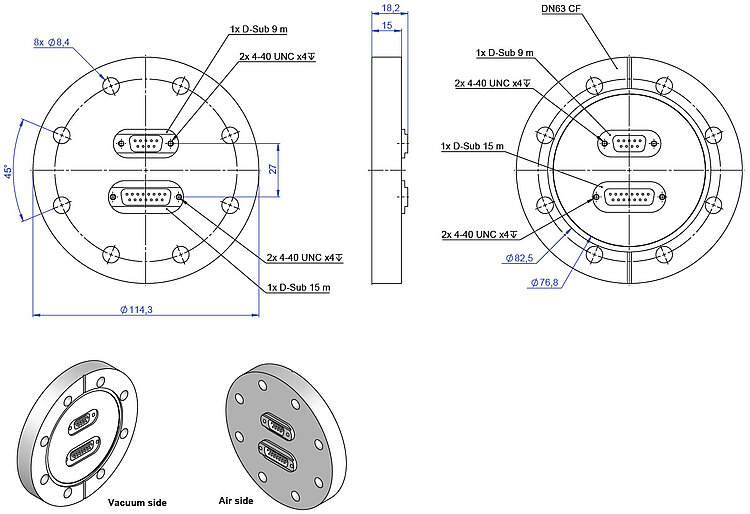

C-815.VFU11, dimensions in mm

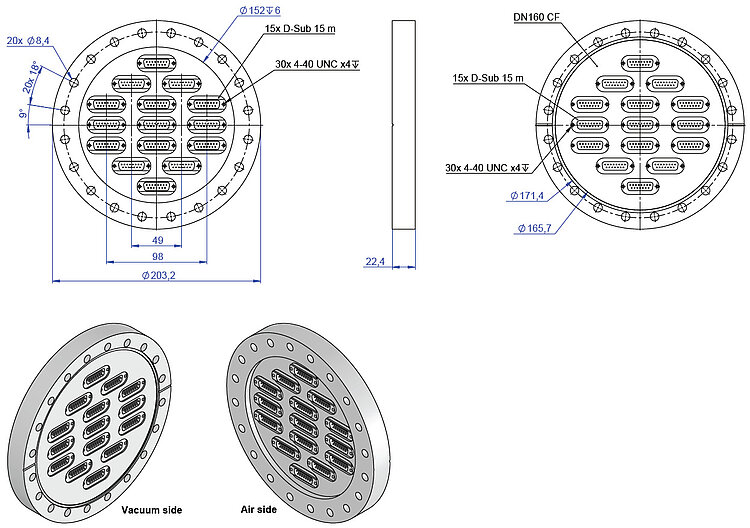

C-815.VFU15, dimensions in mm

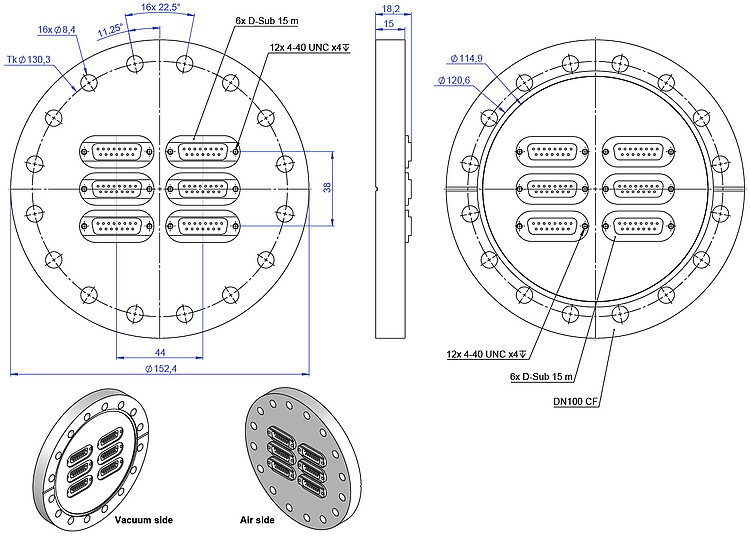

C-815.VFU6, dimensions in mm

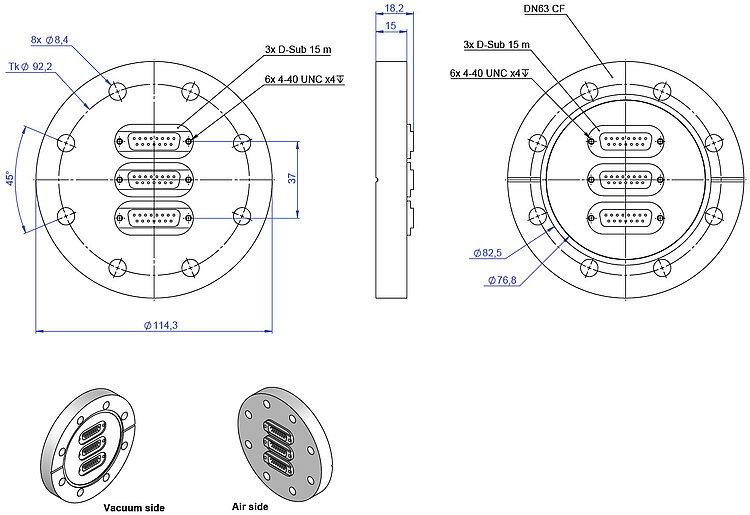

C-815.VFU3, dimensions in mm

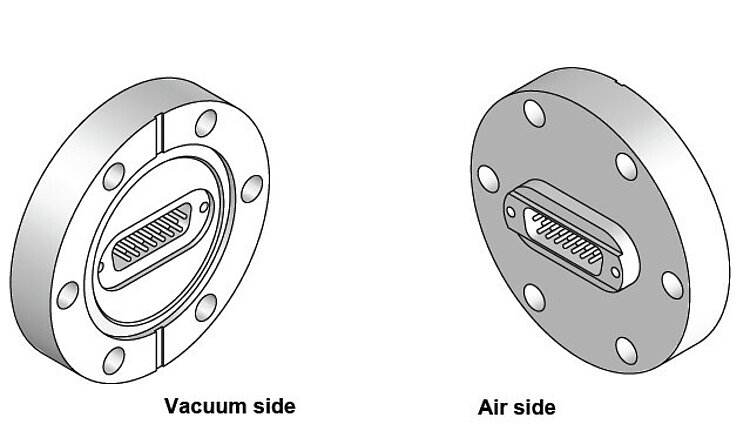

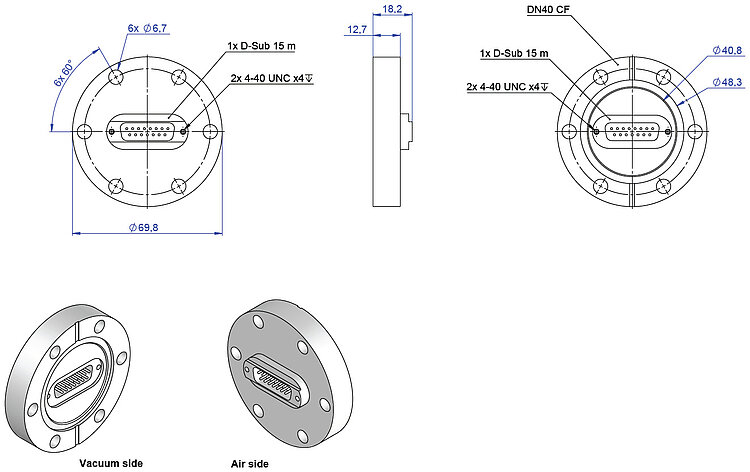

C-815.VFU1, dimensions in mm

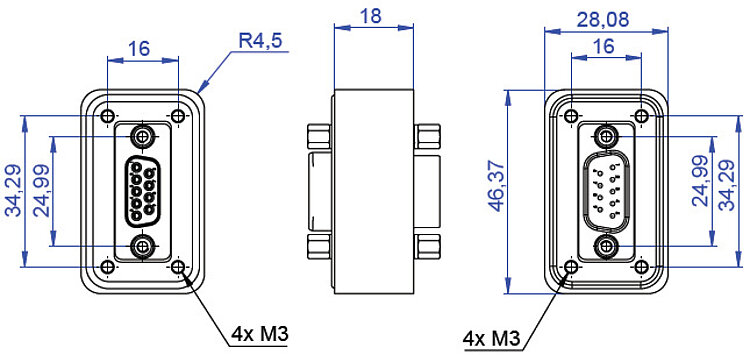

C-815.VF9, dimensions in mm

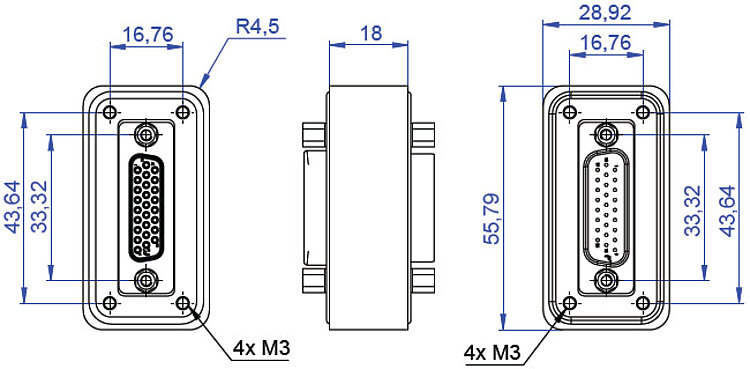

C-815.VF26, dimensions in mm

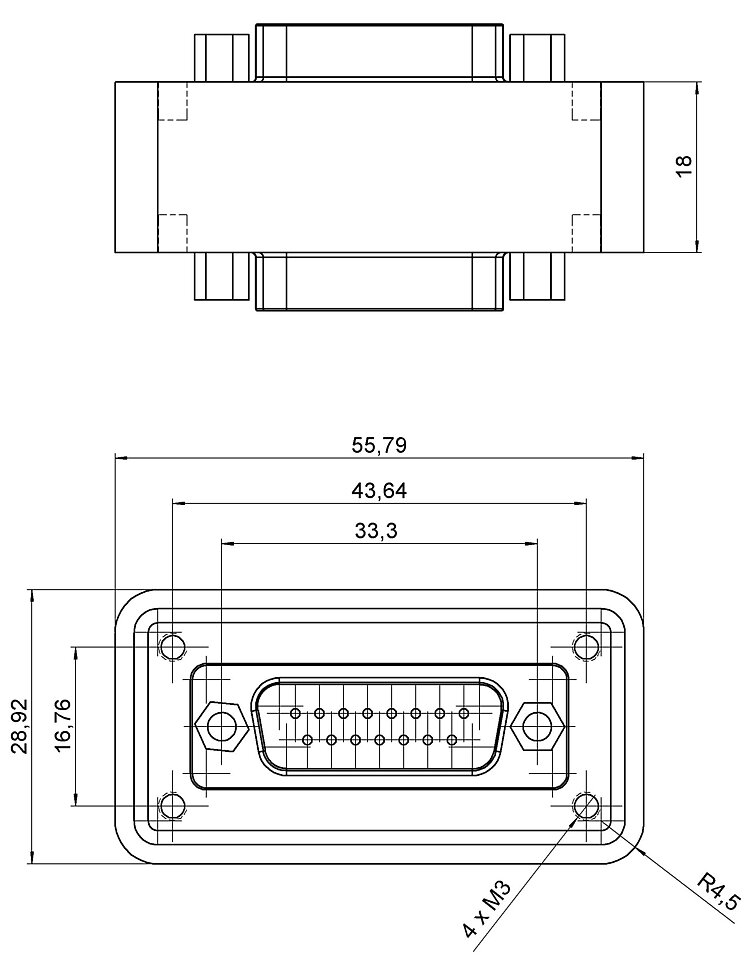

C-815.VF, dimensions in mm

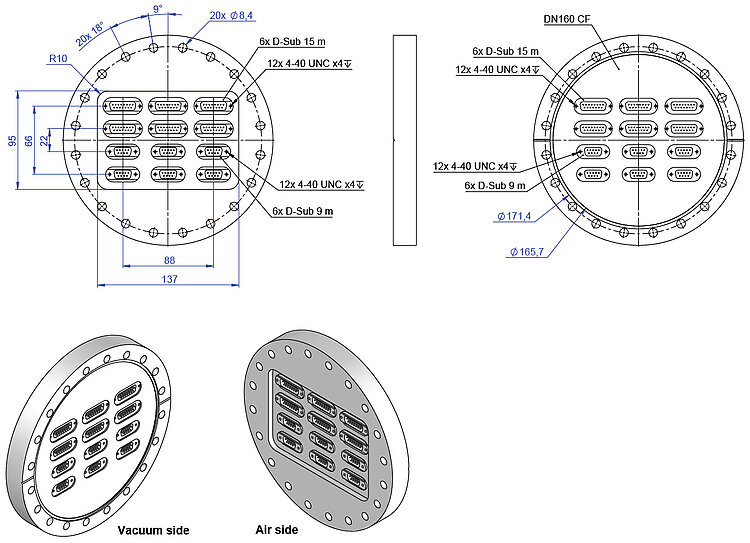

C-815.VFU66, dimensions in mm

Vacuum feedthroughs are the interface between the positioner within the vacuum enclosure and the controller on the air side. With their help, vacuum applications can be connected to standard controllers. Vacuum feedthroughs are available for a variety of connectors and for a different number of cables. The cables are not part of the scope of delivery for the feedthroughs.

Download datasheet 사양 보기

Datasheet

버전 / 날짜

2019-12-17

pdf - 2 MB

버전 / 날짜

2019-12-17

pdf - 2 MB

버전 / 날짜

2021-01-14

pdf - 1 MB

다운로드

Characteristics	V6 feedthroughs	V7 and V9 feedthroughs	Unit
Seal	Fluoroelastomer	Glass ceramics
Flange	Aluminum alloy, gold iridite	Stainless steel 316L
Test voltage	1000	500	V
Max. current per pin	5	5	A
Temperature range	-40 to 125	-200 to 300	°C
Leak rate	< 5 × 10^-9	< 5 × 10^-10	mbar l/s He
Total mass loss (TML)	< 1		%
Collected volatile condensable materials (CVCM)	< 0.1		%

Download datasheet 다운로드 가기

Datasheet

버전 / 날짜

2019-12-17

pdf - 2 MB

버전 / 날짜

2019-12-17

pdf - 2 MB

버전 / 날짜

2021-01-14

pdf - 1 MB

다운로드

견적 / 주문하기

Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.

C-815.VF

Vacuum feedthrough, D-sub 15 (m/f), suitable for high vacuum (to 10^-6 hPa)

Add to quote list Remove from quote list

C-815.VF26

Vacuum feedthrough, HD D-sub 26 (m/f), suitable for high vacuum (to 10^-6 hPa)

Add to quote list Remove from quote list

C-815.VF9

Vacuum feedthrough, D-sub 9 (m/f), suitable for high vacuum (to 10^-6 hPa)

Add to quote list Remove from quote list

C-815.VFU1

Vacuum feedthrough, CF40 flange, 1 × D-sub 15 (m/m), suitable for high vacuum (to 10^-7 hPa) and ultrahigh vacuum (to 10^-9 hPa)

Add to quote list Remove from quote list

C-815.VFU3

Vacuum feedthrough, CF63 flange, 3 × D-sub 15 (m/m), suitable for high vacuum (to 10^-7 hPa) and ultrahigh vacuum (to 10^-9 hPa)

Add to quote list Remove from quote list

C-815.VFU6

Vacuum feedthrough, CF100 flange, 6 × D-sub 15 (m/m), suitable for high vacuum (to 10^-7 hPa) and ultrahigh vacuum (to 10^-9 hPa)

Add to quote list Remove from quote list

C-815.VFU15

Vacuum feedthrough, CF160 flange, 15 × D-sub 15 (m/m), suitable for high vacuum (to 10^-7 hPa) and ultrahigh vacuum (to 10^-9 hPa)

Add to quote list Remove from quote list

C-815.VFU11

Vacuum feedthrough, CF63 flange, 1 × D-sub 9 (m/m) und 1 × D-sub 15 (m/m), suitable for high vacuum (to 10^-7 hPa) and ultrahigh vacuum (to 10^-9 hPa)

Add to quote list Remove from quote list

C-815.VFU33

Vacuum feedthrough, CF100 flange, 3 × D-sub 9 (m/m) und 3 × D-sub 15 (m/m), suitable for high vacuum (to 10^-7 hPa) and ultrahigh vacuum (to 10^-9 hPa)

Add to quote list Remove from quote list

C-815.VFU66

Vacuum feedthrough, CF160 flange, 6 × D-sub 9 (m/m) und 6 × D-sub 15 (m/m), suitable for high vacuum (to 10^-7 hPa) and ultrahigh vacuum (to 10^-9 hPa)

Add to quote list Remove from quote list
