E-861 PiezoWalk® NEXACT® Controller

Networkable Controller for NEXACT® Linear Drives and Positioners

  • High-speed encoder input
  • Macro programmable for stand-alone functionality
  • Data recorder
  • Nonvolatile EEPROM for macros and parameters
  • Daisy chain networking
E-861 PiezoWalk® NEXACT® Controller
제품 설명 사양 다운로드 견적 / 주문

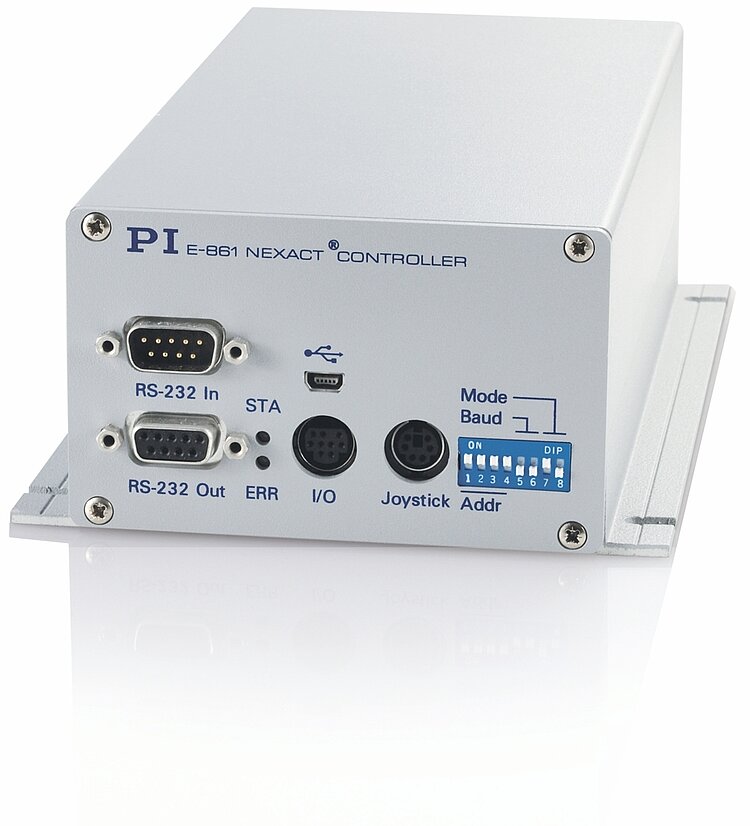

Digital servo controller for NEXACT® piezo motors

1 axis. Supports motion types of the PiezoWalk® drives: Nanostepping mode for longer distances. Highly dynamic positioning within one step with resolutions below one nanometer.

Interfaces and communication

USB and RS-232 interfaces for commanding. A/B quadrature encoder input. TTL inputs for limit and reference point switches. I/O lines (analog/digital) for automation. Interface for analog joystick. Daisy chain networking for up to 16 axes operated via a common computer interface.

Extensive functions, software support

Powerful macro command language. Nonvolatile macro storage, e.g., for stand-alone operation with autostart macro. Data recorder. PID controller, parameter changing during operation. Extensive software support, e.g., for LabVIEW, C, C++, MATLAB, Python. PIMikroMove user software.

Fields of application

  • 2-photon microscopy, confocal microscopy
  • 3-D imaging
  • Laser technology
  • Interferometry
  • Biotechnology
  • Micromanipulation
  • Autofocus with high demands on travel range
