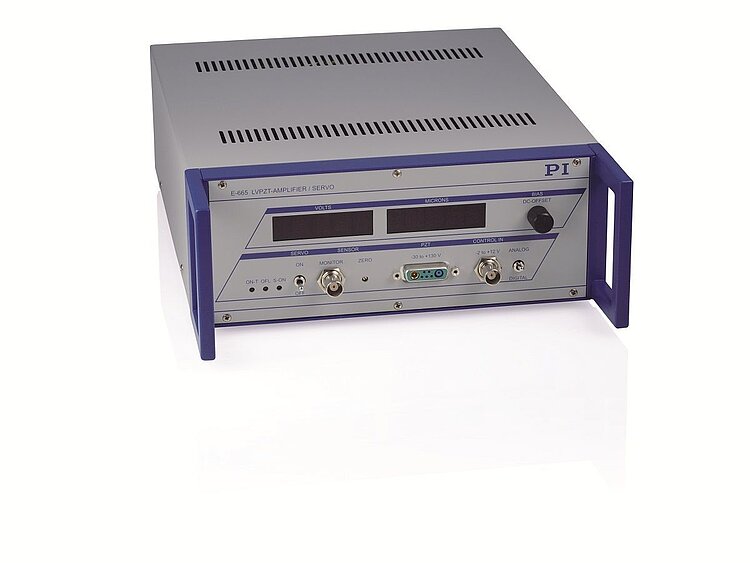

E-665 Piezo Amplifier / Servo Controller
For 1 Axis, with Analog and Digital Interface
- 360 mA Peak current
- Notch filter for higher bandwidth
- Position control for SGS and capacitive sensors
- Table for user-defined curves
- Integrated 24-bit USB interface (.CR, .SR)
- Network capability up to 12 axes (.CR, .SR)
Specifications
Specifications
Interfaces and operation | E-665.SR, E-665.S0 / E-665.CR |
---|---|
Communication interfaces* | USB, RS-232 (Sub-D 9 (m)), 24-bit A/D and 20-bit D/A |
Piezo connection | LEMO ERA.00.250.CTL (.S) / Sub-D special (.C) |
Sensor connection | LEMO EPL.0S.304.HLN (.S) / Sub-D special (.C) |
Analog input | BNC |
Sensor monitor socket | BNC |
Controller network* | up to 12 channels, parallel |
Supported functions* | Wave table; 256 data points, up to 16 macros |
Display and indicators | 2 × 4½ digits, LED |
DC offset setting | 10-turn potentiometer, adds 0 to 10 V to the input voltage |
Downloads
Datasheet
Documentation
Technical Note A000T0074
Guide to Grounding and Shielding
User Manual PZ127
E-665 Piezo Amplifier / Controller, Analog and Digital Interfaces
User Manual E665T0009
E-665.S0 LVPZT Controller, Single-Channel, Strain Gauge Sensor, for Analog Operation (no network operation)
User Manual PZ150
E-802.55, Servo-Controller Submodule, revision ADC or higher
User Manual PZ117
E-801 Sensor Submodule
User Manual PZ113
E-802.50, .51, .52, .55 (old versions) Servo-Controller Submodule
User Manual PZ184
E-802.56 Servo-Controller Submodule
User Manual PZ116
E-816 Computer Interface and Command Interpreter Submodule
User Manual PZ120
E-816 GCS DLL & COM Server
Software Files
PI Software Suite C-990.CD1
C-990.CD1 Releasenews
General Software Documentation
User Manual A000T0075
Implementing a C-887 PI Controller in TwinCAT 3.1
Software Manual SM158
PI GCS2 Driver Library for NI LabVIEW
User Manual A000T0028
Updating PI Software with PIUpdateFinder
Software Manual SM146
GCS Array Data Format
Software Manual SM148
PIMikroMove
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
