P-845.10
Preloaded piezo actuator; PICMA® piezo actuator drive; 15 µm travel range; 47 mm length; push force capacity 3000 N; pull force capacity 700 N; SGS, direct position measuring; LEMO connectors; 1 m cable length

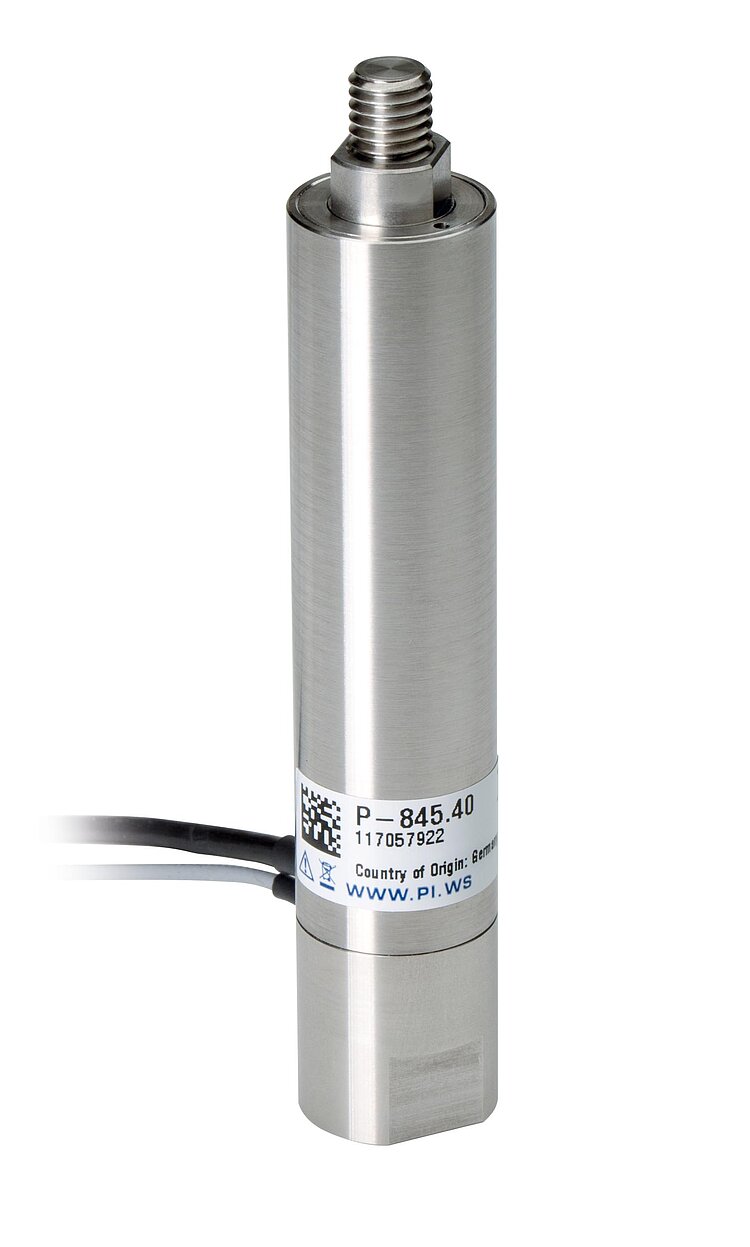

P-845 Preloaded Piezo Actuators
For Very High Loads and Forces, with Position Sensor
- Outstanding lifetime due to PICMA® piezo actuators
- Travel range to 90 µm
- Push force capacity to 3000 N
- Pull force capacity to 700 N
- µs response time
- Subnanometer resolution
P-844 / P-845, dimensions in mm. Sensor included only with P-845.
P-845 Preloaded Piezo Actuators
제품 설명
사양
다운로드
견적 / 주문
Application fields
- Static and dynamic precision positioning
- Fiber positioning
- Laser tuning
- Nanotechnology
Outstanding lifetime thanks to PICMA® piezo actuators
The PICMA® piezo actuators are all-ceramic insulated. This protects them against humidity and failure resulting from an increase in leakage current. PICMA® actuators offer an up to ten times longer lifetime than conventional polymer-insulated actuators. 100 billion cycles without a single failure are proven.
Specifications
Specifications
| Motion | P-845.10 | P-845.20 | P-845.30 | P-845.40 | P-845.60 | Tolerance |
|---|---|---|---|---|---|---|
| Active axes | Z | Z | Z | Z | Z | |
| Travel range in Z | 15 µm | 30 µm | 45 µm | 60 µm | 90 µm | |
| Positioning | P-845.10 | P-845.20 | P-845.30 | P-845.40 | P-845.60 | Tolerance |
| Resolution in Z, open loop | 0.15 nm | 0.3 nm | 0.45 nm | 0.6 nm | 0.9 nm | typ. |
| Integrated sensor | SGS, direct position measuring | SGS, direct position measuring | SGS, direct position measuring | SGS, direct position measuring | SGS, direct position measuring | |
| System resolution in Z | 0.3 nm | 0.6 nm | 0.9 nm | 1.2 nm | 1.8 nm | |
| Drive Properties | P-845.10 | P-845.20 | P-845.30 | P-845.40 | P-845.60 | Tolerance |
| Drive type | PICMA® | PICMA® | PICMA® | PICMA® | PICMA® | |
| Electrical capacitance in Z | 6 µF | 12 µF | 18 µF | 24 µF | 36 µF | ±20 % |
| Mechanical Properties | P-845.10 | P-845.20 | P-845.30 | P-845.40 | P-845.60 | Tolerance |
| Stiffness in Z | 225 N/µm | 107 N/µm | 75 N/µm | 57 N/µm | 38 N/µm | ±20 % |
| Resonant frequency in Z, unloaded | 16 kHz | 12 kHz | 9 kHz | 7.5 kHz | 5.5 kHz | ±20 % |
| Permissible push force in Z | 3000 N | 3000 N | 3000 N | 3000 N | 3000 N | max. |
| Permissible pull force in Z | 700 N | 700 N | 700 N | 700 N | 700 N | max. |
| Permissible torque in θZ | 1 N·m | 1 N·m | 1 N·m | 1 N·m | 1 N·m | max. |
| Mass without cable | 84 g | 108 g | 132 g | 156 g | 204 g | ±5 % |
| Material | Housing / tip: Stainless steel | Housing / tip: Stainless steel | Housing / tip: Stainless steel | Housing / tip: Stainless steel | Housing / tip: Stainless steel | |
| Length | 47 mm | 65 mm | 83 mm | 101 mm | 137 mm | ±0,2 mm |
| Miscellaneous | P-845.10 | P-845.20 | P-845.30 | P-845.40 | P-845.60 | Tolerance |
| Operating temperature range | -40 to 80 °C | -40 to 80 °C | -40 to 80 °C | -40 to 80 °C | -40 to 80 °C | |
| Connector | LEMO LVPZT | LEMO LVPZT | LEMO LVPZT | LEMO LVPZT | LEMO LVPZT | |
| Cable length | 1 m | 1 m | 1 m | 1 m | 1 m | |
| Recommended controllers / drivers | E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831 | E-503, E-505, E-610, E-621, E-625, E-663, E-665, E-709, E-831 |
Integrated sensor: Versions with SGS allow closed-loop linearity up to 0.15 % and are shipped with calibration log.
Stiffness in Z: Static large-signal stiffness; dynamic small-signal stiffness is approx. 30 % higher.
The resolution of the system is only limited by the noise of the amplifier and measuring technology because PI piezo actuators are free of friction.
