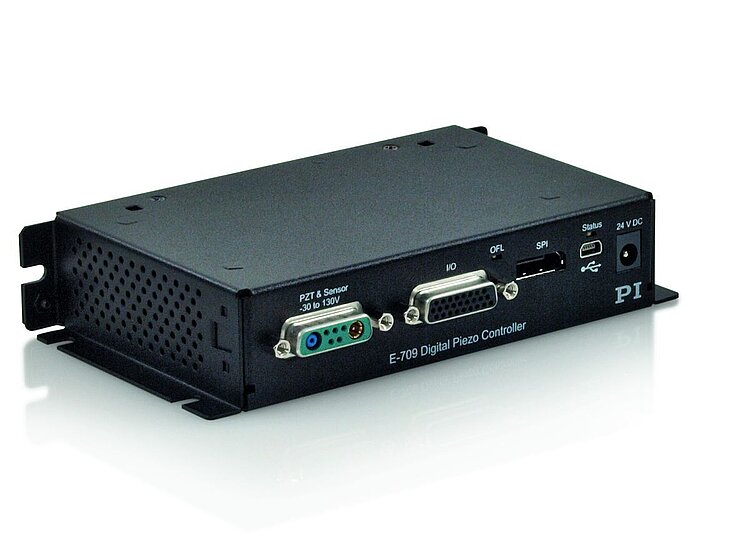

E-709 Compact and Cost-Optimized Digital Piezo Controller
For SGS, Piezoresistive and Capacitive Sensors, 1 Axis
- Linearity error maximum of 0.02 %
- Fast 25 Mbit/s serial interface
- Comprehensive I/O functions
- Inexpensive OEM versions available
- Extensive software package

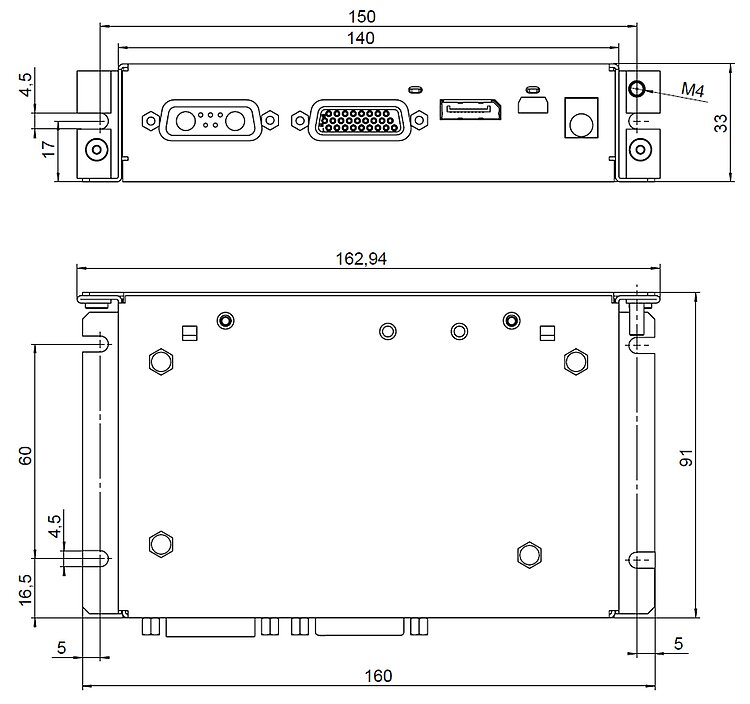

E-709.xRG: dimensions in mm. Note that a comma is used in the drawings instead of a decimal point.

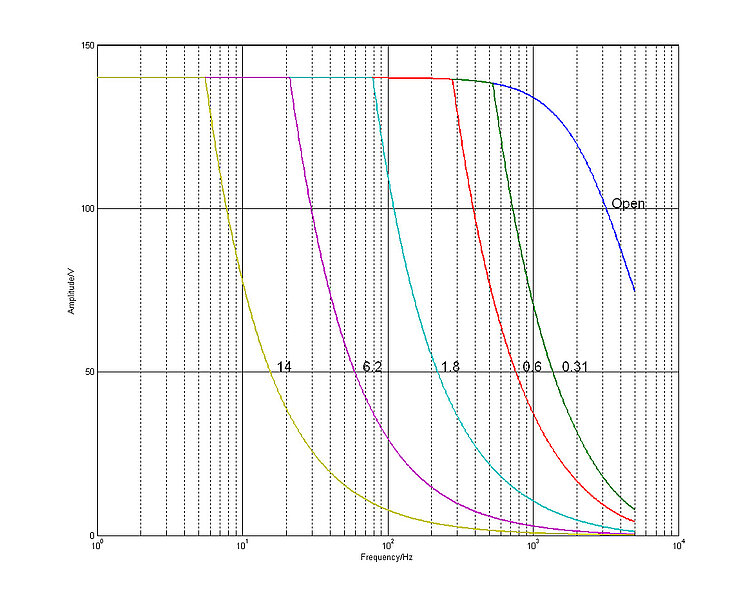

E-709: Operating limits (open loop) with various piezo loads, capacitance values in µF
Comparison of the linearity of a strain gauge sensor with analog controller (top) and the E-709 digital controller (bottom), which improves the linearity by up to one order of magnitude

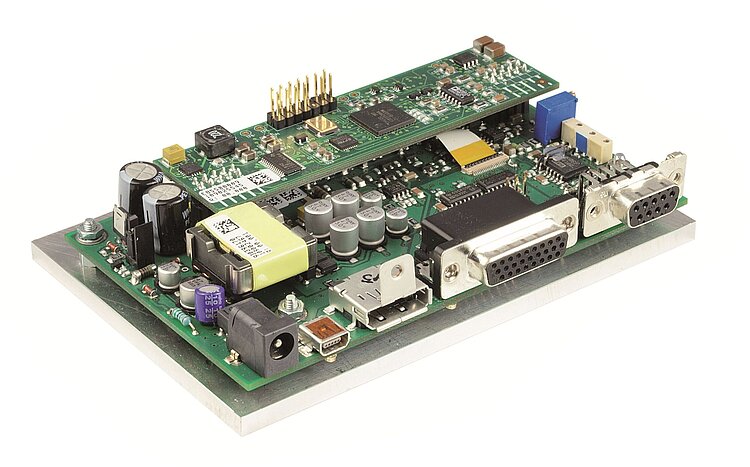

OEM version of the E-709 without housing
E-709 Compact and Cost-Optimized Digital Piezo Controller
제품 설명
사양
다운로드
견적 / 주문
Fast digital servo controller
Benchtop (.xRG) or OEM board (.xR). Voltage range -30 to 130 V.
Interfaces
USB, digital RS-232, fast serial interface with up to 25 MBit/s. Additional high-bandwidth analog control input / sensor input. Analog output, e.g., for external amplifiers.
User software and functions
PIMikroMove, PI General Command Set (GCS). Drivers for NI LabVIEW, shared libraries for Windows and Linux. Compatible with µManager, MATLAB. Wave generator. Linearization. Data recorder. Autozero. Trigger I/O. Software-configurable parameters.
Application fields
- Multiphoton microscopy, confocal microscopy
- 3-D imaging
- Screening
- Autofocus systems
- Surface analysis
- Wafer inspection
Specifications
Specifications
E-709.SR / E-709.SRG | E-709.PR / E-709.PRG | E-709.CR / E-709.CRG | |
|---|---|---|---|
Sensor type | Strain gauge sensors | Piezoresistive sensors | Capacitive sensors |
Function | Digital controller for single-axis piezo nanopositioning systems (.SR: OEM board) | Digital controller for single-axis piezo nanopositioning systems (.PR: OEM board) | Digital controller for single-axis piezo nanopositioning systems (.CR: OEM board) |
Axes | 1 | 1 | 1 |
Processor | DSP 32-bit floating point, 150 MHz | DSP 32-bit floating point, 150 MHz | DSP 32-bit floating point, 150 MHz |
Controller type | PID, two notch filters, sensor linearization | PID, two notch filters, sensor linearization | PID, two notch filters, sensor linearization |
Sampling rate, servo control | 10 kHz | 10 kHz | 10 kHz |
Sampling rate, sensor | 10 kHz | 10 kHz | 10 kHz |
Amplifier | E-709.SR / E-709.SRG | E-709.PR / E-709.PRG | E-709.CR / E-709.CRG |
|---|---|---|---|
Output voltage | -30 V to 130 V | -30 V to 130 V | -30 V to 130 V |
Peak power (<5 ms) | 10 W | 10 W | 10 W |
Average output power (>5 ms) | 5 W | 5 W | 5 W |
Peak current (<5 ms) | 100 mA | 100 mA | 100 mA* |
Average output current (>5 ms) | 50 mA | 50 mA | 50 mA* |
Current limitation | Short-circuit proof | Short-circuit proof | Short-circuit proof |
Resolution DAC | 17-bit | 17-bit | 17-bit |
Interfaces and operation | E-709.SR / E-709.SRG | E-709.PR / E-709.PRG | E-709.CR / E-709.CRG |
|---|---|---|---|
Communication | USB, RS-232, SPI | USB, RS-232, SPI | USB, RS-232, SPI |
Piezo / sensor connector | D-sub 9 (f) | D-sub 9 (f) | D-sub special connector |
I/O | HD D-sub 26 (f) 1 analog input 0 to 10 V (configurable) 1 analog output 0 to 10 V (configurable) 1 monitor piezo voltage -0.3 to 1.3 V 1 digital input (LVTTL, programmable) 5 digital outputs (LVTTL, 3x predefined, 2x programmable) | ||
Command set | PI General Command Set (GCS) | ||
User software | PIMikroMove | ||
Software drivers | C, C++, C#, MATLAB, NI LabVIEW, Python; supported by MATLAB, µManager, Andor iQ | ||
Supported functions | Wave generator, data recorder, autozero, trigger I/O | ||
Display and indicators | Status LED, overflow LED | ||
Miscellaneous | E-709.SR / E-709.SRG | E-709.PR / E-709.PRG | E-709.CR / E-709.CRG |
|---|---|---|---|
Operating temperature range | 5 to 50 °C (above 40 °C, power derated) | 5 to 50 °C (above 40 °C, power derated) | 5 to 50 °C (above 40 °C, power derated) |
Dimensions | 160 mm × 96 mm × 33 mm | 160 mm × 96 mm × 33 mm | 160 mm × 96 mm × 33 mm |
Mass | 260 g / 470 g | 260 g / 470 g | 260 g / 470 g |
Operating voltage | 24 V DC (for .SRG included in the scope of delivery: external power adapter) | 24 V DC (for .PRG included in the scope of delivery: external power adapter) | 24 V DC (for .CRG included in the scope of delivery: external power adapter) |
Max. power consumption | 24 W | 24 W | 24 W |
* The E-709 is also available for capacitive sensor-equipped positioning systems in a version with higher output current.
