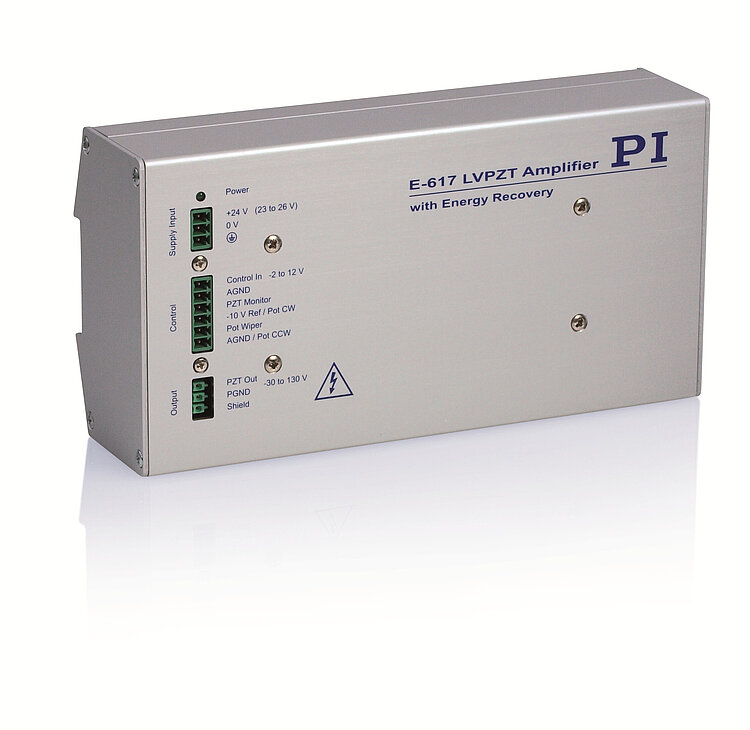

E-617 High-Performance Piezo Amplifier
Industrial / OEM Module with Energy Recovery for Continuous Dynamic Applications
- Peak power to 280 W
- High currents to 2000 mA
- Low power consumption due to integrated energy recovery
- OEM module and top hat rail mounting
High-power amplifier for low-voltage piezo actuators
Peak power up to 280 W, average output power up to 100 W. Output and absorption of peak current up to 2000 mA. Dynamic operation of piezo actuators with high capacity at a bandwidth up to the kilohertz range.
High performance with heavy loads
An analog input voltage is amplified in the E-617 amplifier by a factor of 10 and provides precision control of piezo actuators and piezo positioning systems. This analog mode is ideal for applications where fast response times are essential at maximum bandwidth. The specification or position feedback in absolute values is either not significant or is done by external position sensors.
Energy recovery
The efficient switching principle reduces the power consumption and heat dissipation considerably, especially in dynamic applications. In this way, the energy is coupled into the piezo with low loss via pulse width modulation (PWM). The energy generated by the discharging piezo is recovered and made available for the next charge. A unipolar supply voltage between 23 to 26 V DC is sufficient for operation.
Application fields
Industry, automation. High dynamics scanning or switching applications.
Specifications
Specifications

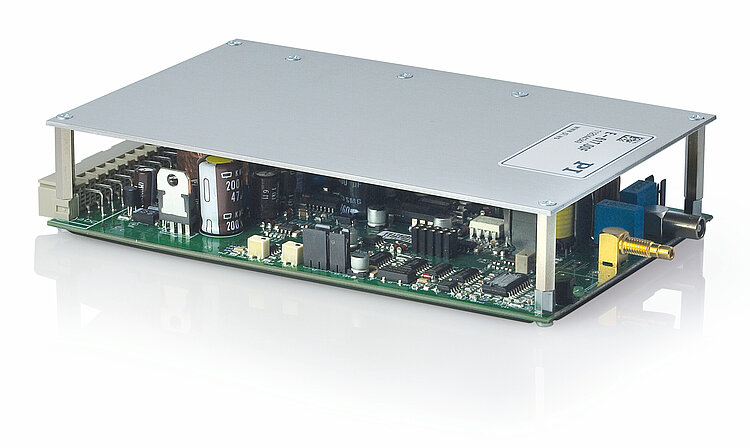

Amplifier | E-617.001 | E-617.00F |
---|---|---|
Input voltage range | -2 to 12 V | -2 to 12 V |
Output voltage | -30 to 130 V | -30 to 130 V |
Peak power (<5 ms) | 280 W | 280 W |
Average output power (>5 ms) | Equivalent to 100 W reactive power | Equivalent to 100 W reactive power |
Peak current (<5 ms) | 2000 mA | 2000 mA |
Average output current (>5 ms) | 1000 mA | 1000 mA |
Current limitation | Short-circuit proof | Short-circuit proof |
Voltage gain | 10 ±0.1 | 10 ±0.1 |

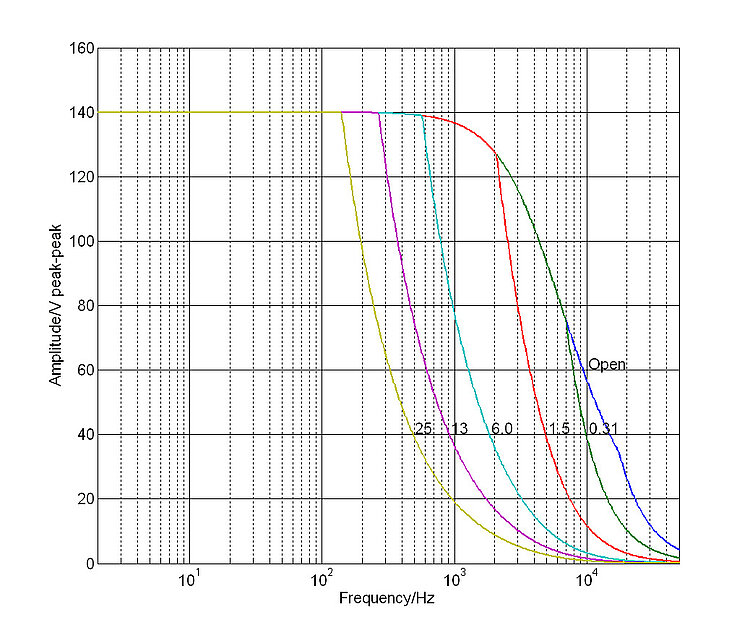

Amplifier bandwidth, small signal | 3.5 kHz | 3.5 kHz |
Ripple, noise, 0 to 10 kHz | <2 mVrms <10 mVpp | <2 mVrms <10 mVpp |
Capacitive base load (internal) | 1.0 µF | 1.0 µF |
Suggested capacitive load | >3 µF | >3 µF |
Output impedance | 0.5 Ω | 0.5 Ω |
Amplifier resolution | <1 mV | <1 mV |
Amplifier classification | Class D (switching amp), 100 kHz | Class D (switching amp), 100 kHz |
Input impedance | 100 kΩ | 100 kΩ |
Interfaces and operation | E-617.001 | E-617.00F |
---|---|---|
Piezo connection (voltage socket) | Phoenix-plug connector MINI-COMBICON 3-pin MC1.5 / 3-ST-3.81 | LEMO ERA.00.250.CTL (front); DIN 41612 32-pin (rear) |
Analog input / control input socket | Phoenix MINI-COMBICON plug connector, 6-pin IMC1.5 / 6-ST-3.81 | SMB |
DC offset setting | External potentiometer (not in the scope of delivery), adds 0 to 10 V to the input voltage | External potentiometer (not in the scope of delivery), adds 0 to 10 V to the input voltage |
Miscellaneous | E-617.001 | E-617.00F |
---|---|---|
Operating voltage | 23 to 26 V DC, stabilized, on Phoenix plug MINI-COMBICON 3-pin IMC1.5 / 3-ST-3.81 | 23 to 26 V DC, stabilized, on 32-pin DIN 41612 connector |
Max. power consumption | <30 W | <30 W |
Operating temperature range | 5 to 50 °C (above 40 °C, power derated) | 5 to 50 °C (above 40 °C, power derated) |
Dimensions | 205 mm × 105 mm × 60 mm | 7 HP / 3 RU |
Mass | 1 kg | 0.35 kg |
