PL088.30

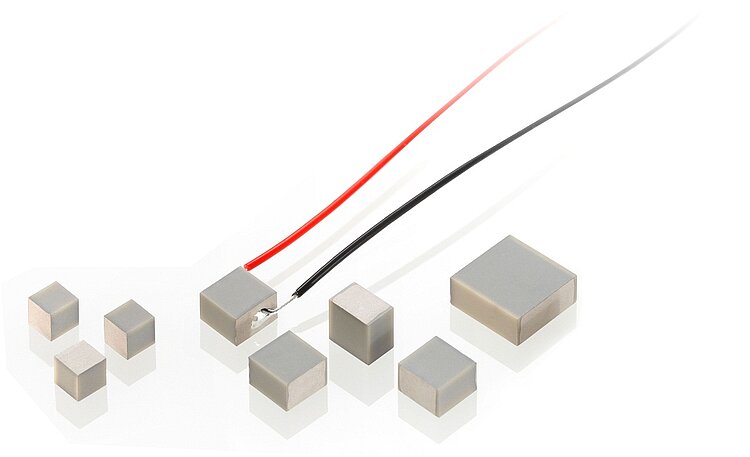

PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 10 mm × 10 mm × 2 mm
PL0xx PICMA® Chip Actuators
Miniature Multilayer Piezo Actuators
- Superior lifetime
- Ultra-compact: From 2 mm × 2 mm × 2 mm
- Ideal for dynamic operation
- Microsecond response
- Subnanometer resolution
- UHV-compatible to 10-9 hPa
On request PICMA® Chip piezo actuators can be manufactured with ceramic-insulated inner hole (left) or with precision-ground ceramic end plates (right)
PL0xx PICMA® Chip Actuators
제품 설명
사양
다운로드
견적 / 주문
Piezo linear actuator with PICMA® multilayer technology
Operating voltage -20 to 100 V. Ceramic insulation, polymer free. Humidity resistance. UHV-compatible to 10-9 hPa, no outgassing, high bakeout temperature. Flexible thanks to numerous designs. Versions with rectangular, round or annular cross section.
Possible modifications
PTFE-insulated wire leads. Various geometric shapes, inner hole. Precision-ground ceramic end plates.
Fields of application
Industry and research. For laser tuning, microdispensing, life sciences.
Specifications
Specifications
| PL022.3x | PL033.3x | PL055.3x | PL088.3x | Unit | Tolerance | |
|---|---|---|---|---|---|---|

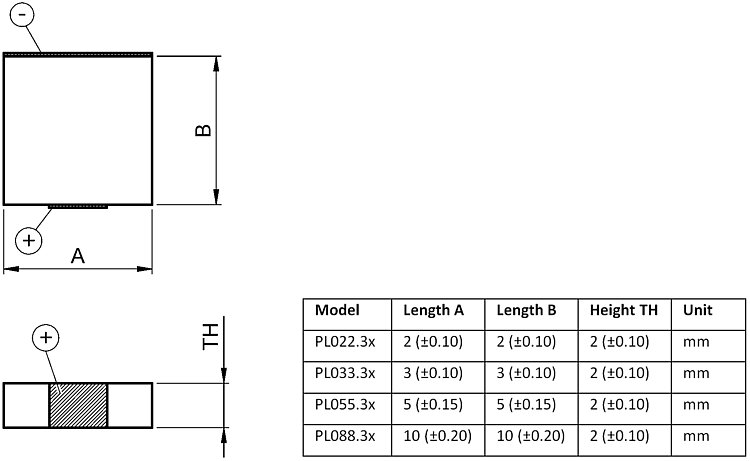

Side length (A) | 2 ±0.10 | 3 ±0.10 | 5 ±0.15 | 10 ±0.20 | mm | |
Side length (B) | 2 ±0.10 | 3 ±0.10 | 5 ±0.15 | 10 ±0.20 | mm | |
Height (TH) | 2 ±0.10 | 2 ±0.10 | 2 ±0.10 | 2 ±0.10 | mm | |
Travel range* | 2.2 | 2.2 | 2.2 | 2.2 | µm | ±20 % |
Blocking force** | >120 | >300 | >500 | >2000 | N | |
Electrical capacitance*** | 25 | 75 | 250 | 1100 | nF | ±20 % |
Axial resonant frequency**** | >600 | >600 | >600 | >600 | kHz | |
Piezo ceramic | PIC252 | PIC252 | PIC252 | PIC252 | ||
Operating voltage range | -20 to 100 | -20 to 100 | -20 to 100 | -20 to 100 | V | |
Operating temperature range | -40 to 150 | -40 to 150 | -40 to 150 | -40 to 150 | °C | |
Recommended preload for dynamic operation | 15 | 15 | 15 | 15 | MPa | |
Maximum preload for constant force | 30 | 30 | 30 | 30 | MPa | |
Recommended electronics | E-610, E-617, E-831 | E-610, E-617, E-831 | E-610, E-617, E-831 | E-610, E-617, E-831 |
Standard connections: PL0xx.31: PTFE-insulated stranded wires, UHV compatible, 100 mm, AWG 32, Ø 0.49 mm; PL0xx.30: Solderable contacts
* At 0 to 100 V. The values refer to the unattached component and can be lower when glued on.
** At 0 to 100 V
*** Measured at 1 Vpp, 1 kHz, RT
**** Measured at 1 Vpp, no load, unclamped. The value is halved for unilateral clamping. Depending on the installation situation, the lateral resonant frequencies can be lower than the axial resonant frequencies.
Ask about custom designs!
Downloads
Datasheet
Documentation
Documentation
User Manual PZ265
PL022 / PL033 / PL055 / PL088 PICMA® Chip miniature multilayer piezo actuators; PD161 Round PICMA® Chip miniature multilayer piezo actuators; PD050 / PD080 / PD120 / PD150 / PD160 Round PICMA® Chip miniature multilayer piezo actuators with inner hole
버전 / 날짜
1.1.0 2021-09-27
pdf - 2 MB
버전 / 날짜
1.1.0 2021-09-27
pdf - 2 MB
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
PICMA® Chip actuators
PL055.30
PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 5 mm × 5 mm × 2 mm
PL033.30
PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 3 mm × 3 mm × 2 mm
PL022.30
PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 2 mm × 2 mm × 2 mm
PICMA® Chip actuators with PTFE-insulated stranded wires
PL088.31
PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 10 mm × 10 mm × 2 mm, stranded wires
PL055.31
PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 5 mm × 5 mm × 2 mm, stranded wires
PL033.31
PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 3 mm × 3 mm × 2 mm, stranded wires
PL022.31
PICMA® Chip miniature piezo actuator, 2.2 µm travel range, 2 mm × 2 mm × 2 mm, stranded wires
Ask about custom designs!
