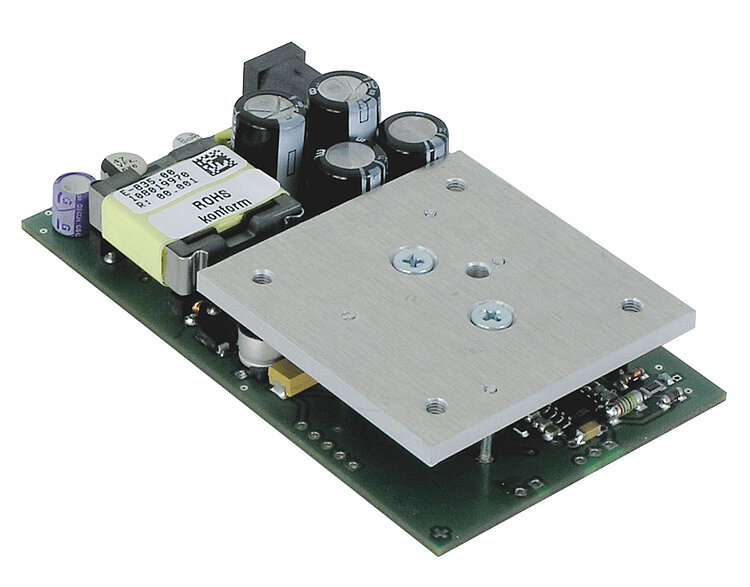

E-835 DuraAct Piezo Amplifier
Bipolar Operation for Piezoelectric Patch Transducers

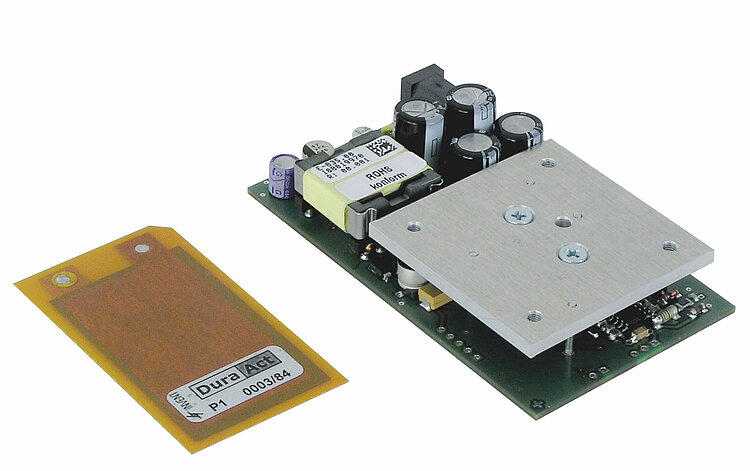

- OEM module for piezoelectric DuraAct patch transducers
- Peak power to 30 W
- Output voltage range -100 to 250 V
- Compact: 87 mm × 50 mm × 21 mm
- High bandwidth >4 kHz
E-835 DuraAct Piezo Amplifier
제품 설명
사양
다운로드
견적 / 주문
Specifications
Specifications
Amplifier | E-835.00 |
---|---|
Input voltage range | -4 to 10 V |
Output voltage | -100 to 250 V |
Peak power | 30 W (<15 ms) |
Average output power | 3 W |
Peak current | 120 mA (<15 ms) |
Average output current | 40 mA |
Current limitation | Short-circuit proof |
Voltage gain | 25 |
Amplifier bandwidth, small signal | 4.2 kHz (60 nF) |
Amplifier bandwidth, large signal | 4.2 kHz (unloaded); 500 Hz (60 nF) |
Ripple, noise, 20 MHz | 2 mVpp |
Output impedance | 33 Ω |
Amplifier resolution | <10 mV |
Input impedance | 100 kΩ |
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
E-835.00
OEM Piezo amplifier for DuraAct patch transducer, 1 channel
