C-815.82D02 NEW!
Data transmission cable for hexapods, drag-chain compatible, HD D-sub 78 m/f, 2 m
NEW

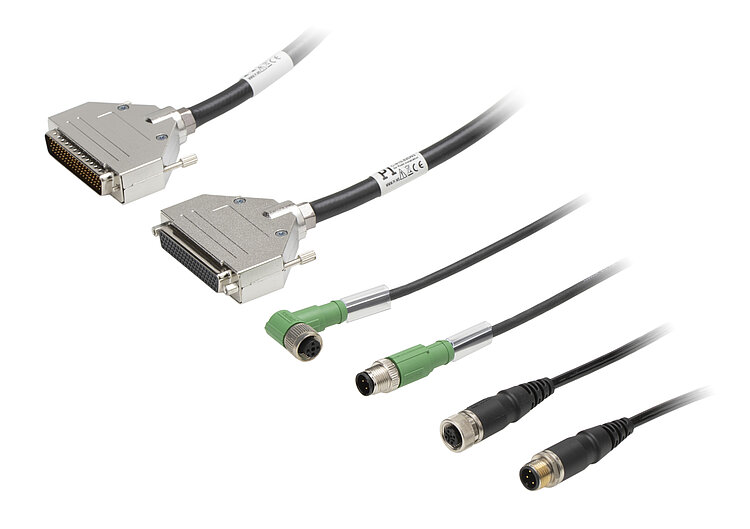

C-815.82xxx Hexapod Cables
Power Supply and Data Transmission Cables
- Drag chain compatible version for industrial applications
- Cable length of 2 to 20 m
- Accessories for hexapods with low power requirement

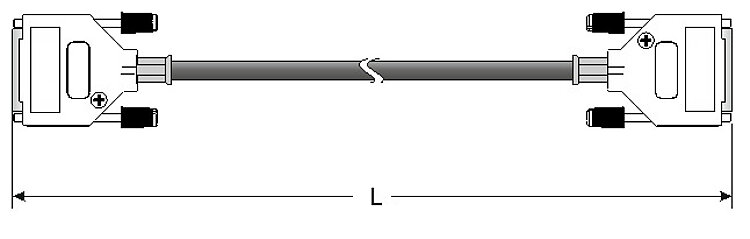

Specified length L of the C-815.82Dxx data transmission cable

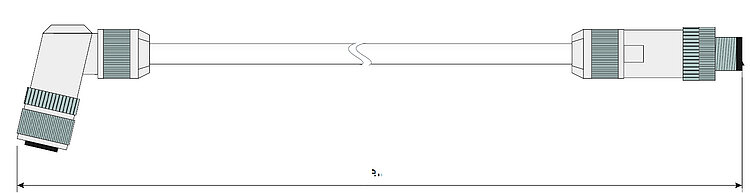

Specified length L of the C-815.82PxxA power supply cable with angled connector

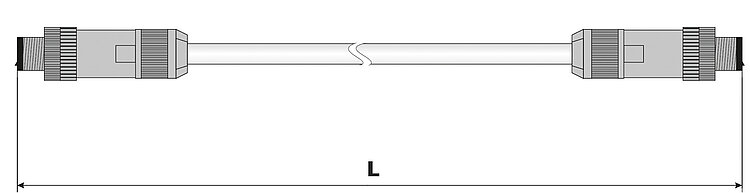

Specified length L of the C-815.82PxxE power supply cable with straight connectors

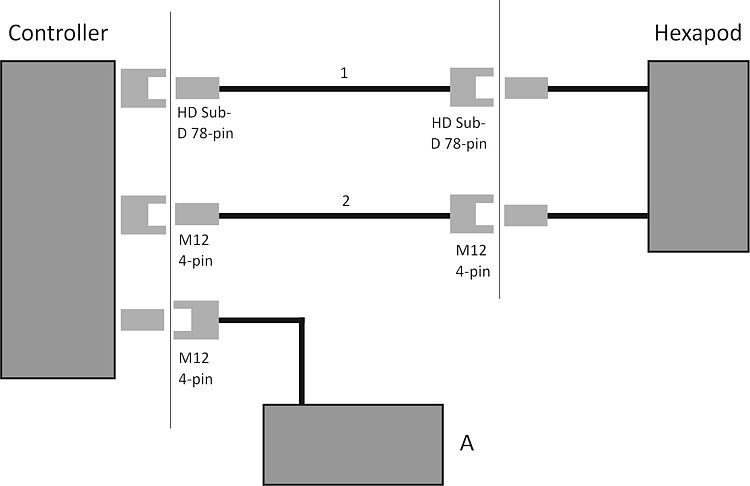

Cabling example using the H-811 with cables fixed to the hexapod (A - power adapter with connecting cable, 1 - data transmission cable, 2 - power supply cable)
C-815.82xxx Hexapod Cables
제품 설명
사양
다운로드
견적 / 주문
Data transmission cables
C-815.82Dxx: D = data transmission cable, xx = length in m
- Application: all hexapod types
Power supply cables, single-side angled connector
C-815.82PxxA: P = power supply cable, xx = length in m, A = angled connector
- Application: H-820, H-824, H-825, H-840, H-850
Power supply cables, straight connectors
C-815.82PxxE: P = power supply cable, xx = length in m, E = straight connectors
- Application: H-810, H-811
Specifications
Specifications
Cables longer that 20 m require additional power drivers.
Ask about customized versions.
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
Data transmission cables
C-815.82D03 NEW!
Data transmission cable for hexapods, drag-chain compatible, HD D-sub 78 m/f, 3 m
C-815.82D05 NEW!
Data transmission cable for hexapods, drag-chain compatible, HD D-sub 78 m/f, 5 m
C-815.82D07 NEW!
Data transmission cable for hexapods, drag-chain compatible, HD D-sub 78 m/f, 7.5 m
C-815.82D10 NEW!
Data transmission cable for hexapods, drag-chain compatible, HD D-sub 78 m/f, 10 m
C-815.82D20 NEW!
Data transmission cable for hexapods, drag-chain compatible, HD D-sub 78 m/f, 20 m
Power supply cables
C-815.82P02A NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f angled, 2 m
C-815.82P03A NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f angled, 3 m
C-815.82P05A NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f angled, 5 m
C-815.82P07A NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f angled, 7.5 m
C-815.82P10A NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f angled, 10 m
C-815.82P20A NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f angled, 20 m
C-815.82P02E NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f straight, 2 m
C-815.82P03E NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f straight, 3 m
C-815.82P05E NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f straight, 5 m
C-815.82P07E NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f straight, 7.5 m
C-815.82P10E NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f straight, 10 m
C-815.82P20E NEW!
Power supply cable for hexapods, drag-chain compatible, M12 m/f straight, 20 m
