U-760.DNOS
PILine® XY stage system, 25 mm × 25 mm, for inverted microscopes from Nikon/Olympus

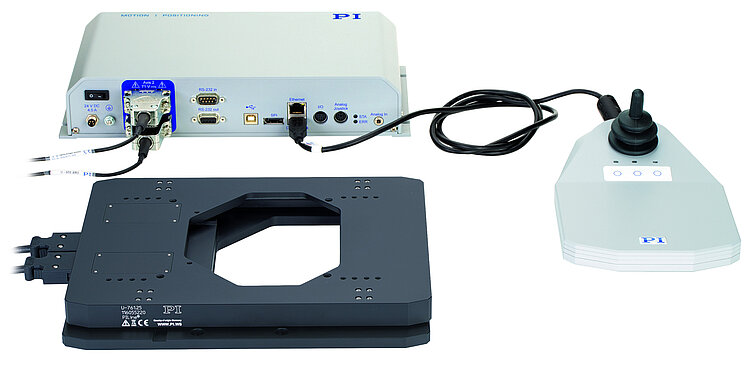

U-760 PILine® XY Stage System with Controller and Joystick
Compact, low vibration, low profile
- Low-profile, quiet PILine® ultrasonic motor
- Suitable for inverted light microscopes from several manufacturers
- Bidirectional repeatability: ±0.5 µm
- Travel range 25 mm × 25 mm
- System with controller and USB joystick
- Extensive accessories

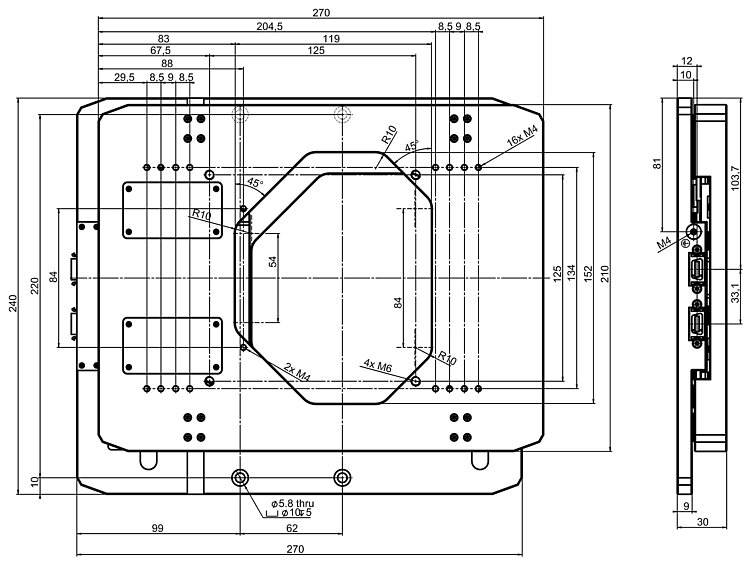

U-761.25, dimensions in mm
U-760 PILine® XY Stage System with Controller and Joystick
제품 설명
사양
다운로드
견적 / 주문
Microscope XY stage for examining with microscope slides and Petri dishes
The travel range 25 × 25 mm offered by the compact and low-profile U-760 microscope XY stage is particularly suitable for examining samples on standard microscope slides. A sample holder is also required and must be ordered separately.
Accessories necessary: Sample holder, fine positioning stages, and Z stages

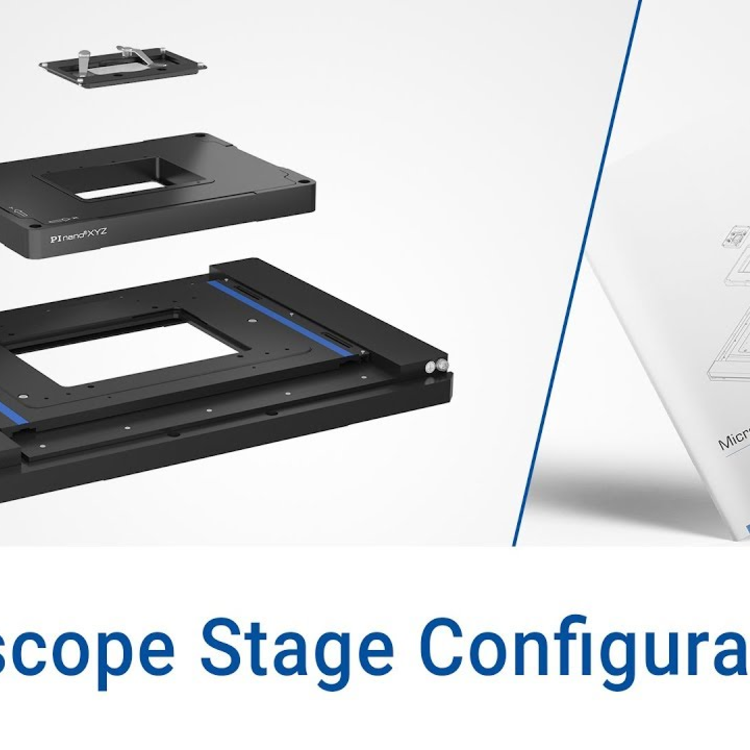

You will find matching fine positioning stages (X / Y / Z / ΘX / ΘY / ΘZ), sample holders (microscope slide, holder for Petri dishes), as well as any adapter plates necessary in our "Microscope Stage Configurator" brochure.

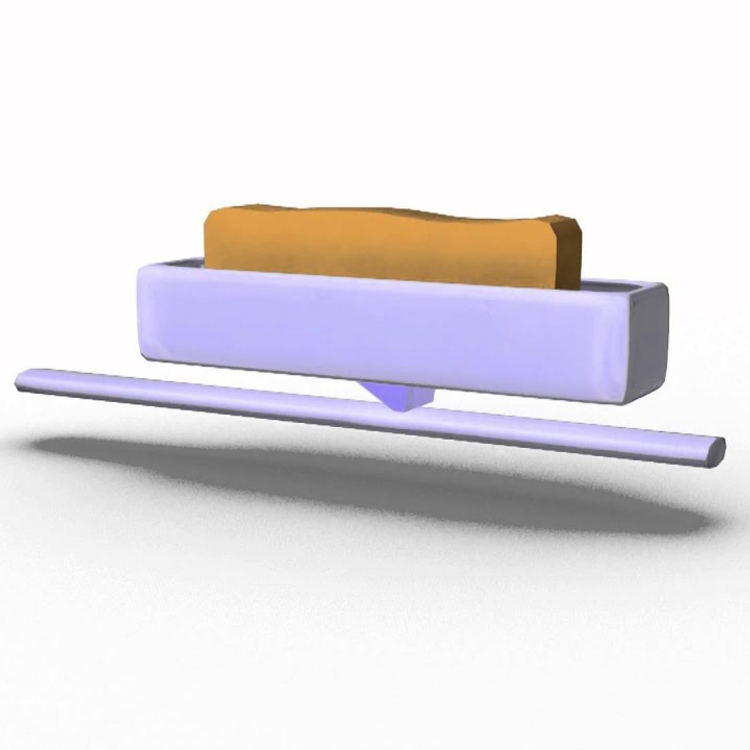

High-resolution PILine® piezo linear drive
Bidirectional repeatability ±0.5 µm. Highest stability due to low thermal load and no lubricants. Large dynamics range of 10 µm/s to 100 mm/s, ideal for operating with a joystick. Self-locking at rest. Low noise.
Suitable for microscopes from several manufacturers
For inverted microscopes from Nikon (Eclipse Ti, Ti2) and Olympus (IX, IX2, IX3). Versions for other microscopes on request.
Extensive accessories / can be combined with numerous PI nanopositioners
It is possible to mount piezo nanopositioners from the P-545 PInano® and P-541 / P-542 series onto the platform of the U-760. Adapter plates from PI are available for combining with other piezo nanopositioners.
Various sample holders available (holders for microscope slides/Petri dish holders).
Specifications
Specifications
Motion and positioning | U-760.DNOS | Unit | Tolerance |
|---|---|---|---|
System with U-761.25 for Nikon and Olympus microscopes | |||
Active axes | X, Y | ||
Travel range | 25 mm × 25 mm | ||
Integrated sensor | Linear encoder | ||
Sensor resolution | 0.01 | µm | |
Bidirectional repeatability | ±0.5 | µm | |
Pitch / yaw | ±200 | µrad | |
Velocity | 100 | mm/s | Max. |
Reference switch | Optical, 1 µm repeatability |
Piezo motor controller | U-760.DNOS |
|---|---|
Type | C-867K058 with USB joystick (included in the scope of delivery) |
Interface / communication | USB, RS-232, SPI, Ethernet |
I/O lines | 4 analog / digital inputs 4 digital outputs to mini DIN, 9-pole Digital: TTL Analog: 0 to 5 V |
Command set | PI General Command Set (GCS) |
User software | PIMikroMove |
Software drivers | GCS DLL (with code examples for the most common programming languages such as C++, C#, VB.NET, Python, Delphi), driver for LabVIEW, MATLAB library |
Supported functions | Startup macro, macro, data recorder for recording operating data such as motor voltage, velocity, position or position error |
Controller dimensions | 312 mm × 153.4 mm × 59.3 mm (incl. mounting rails) |
Downloads
Datasheet
Documentation
Documentation
User Manual U761T0001
PILine® XY Microscope Stage
버전 / 날짜
2020-09-25
pdf - 1 MB
영어
Documentation
User Manual MS231
C-867.2U2 Piezomotor Controller / Driver, Networkable, 2 Axes, for PILine® Systems with Sub-D Connector
버전 / 날짜
3.1.0 2024-10-24
pdf - 8 MB
버전 / 날짜
3.1.0 2024-10-24
pdf - 8 MB
Brochure
Brochure
Microscope Stage Configurator
Sample Stages and Holders for Inverted Microscopes
버전 / 날짜
BRO70E
pdf - 3 MB
영어
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
Accessories
U-761.AP1
Adapter plate for mounting the P-736.ZRxS PInano® Z microscope scanner stage onto the U-760 XY stage.
P-733.AP1
Adapter plate for mounting P-733 piezo stages onto M-545 XY stages and U-760 XY stage systems
P-545.SH3
Microscope slide holder for PInano® piezo stages
P-545.PD3
Petri dish holder, 35 mm, for PInano® piezo stages
P-542.SH1
Microscope slide holder for P-54x nanopositioning systems
P-542.PD1
Petri dish holder for P-54x nanopositioning systems, 35 mm
