M-545.2MO
XY stage, 25 mm × 25 mm, micrometer screw, high stability, compatible with PI piezo stages, for Olympus microscopes (IX2, IX3)
M-545 Microscope XY Stage
Compact, Stable, Long Travel Range
- Stable platform for P-545 PInano® piezo nanopositioning systems
- Low profile for easy integration: 30 mm
- Travel range 25 mm × 25 mm
- Manual operation with micrometer screws, optional motorization
- For inverted microscopes from Nikon, Zeiss, Leica, and Olympus

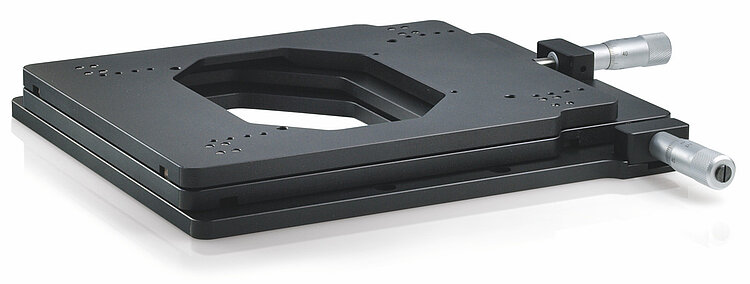

M-545 microscope XY stage

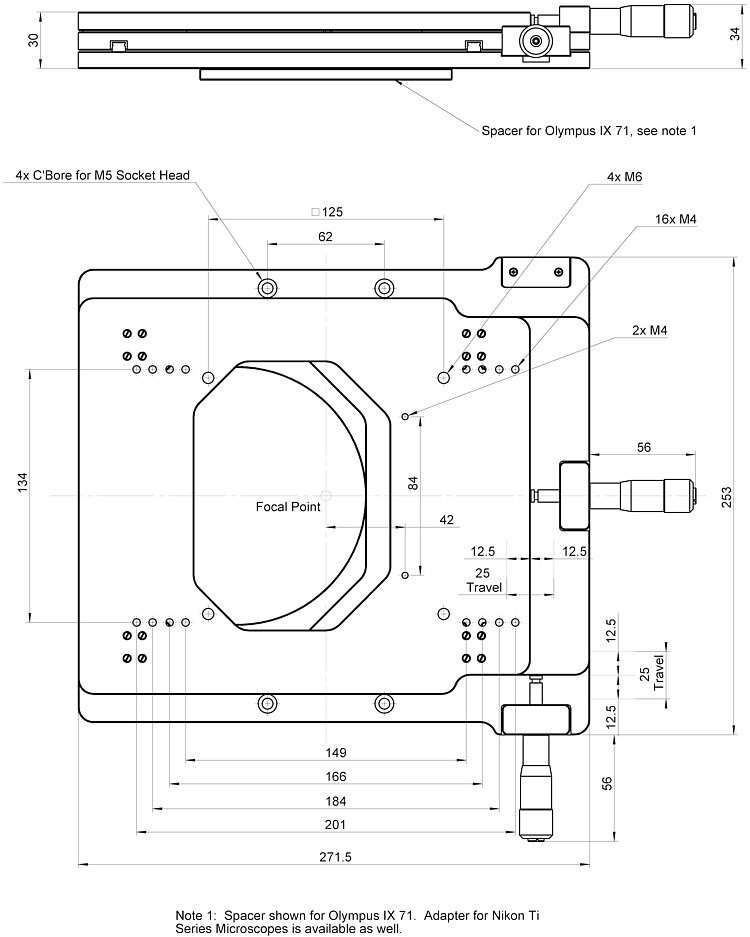

M-545.2MO and M-545.2MN: dimensions in mm. Delivery includes holders for Olympus respectively Nikon microscopes.

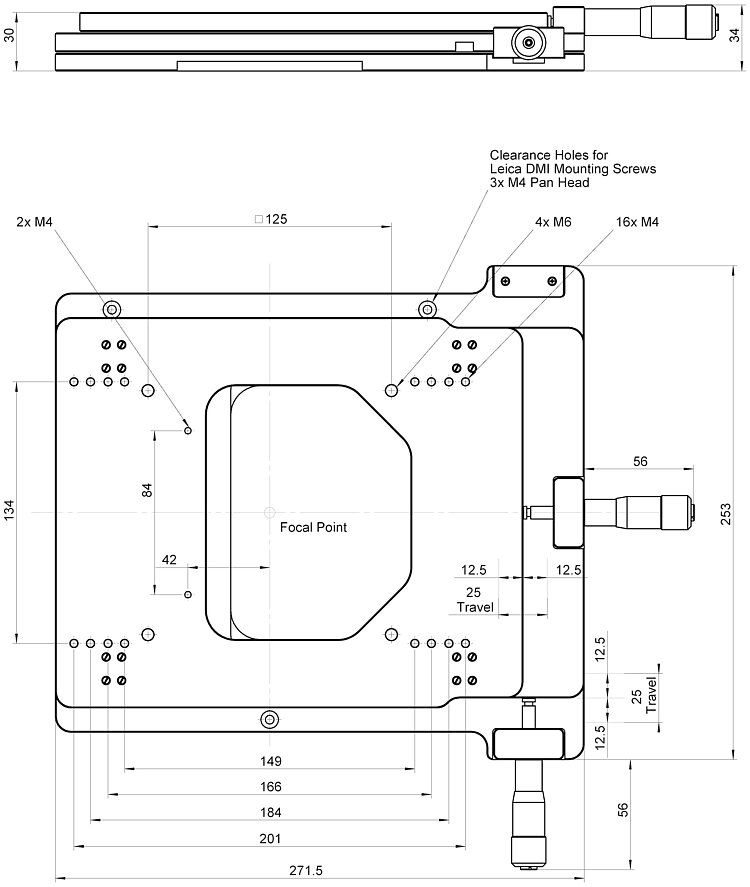

M-545.2ML: dimensions in mm

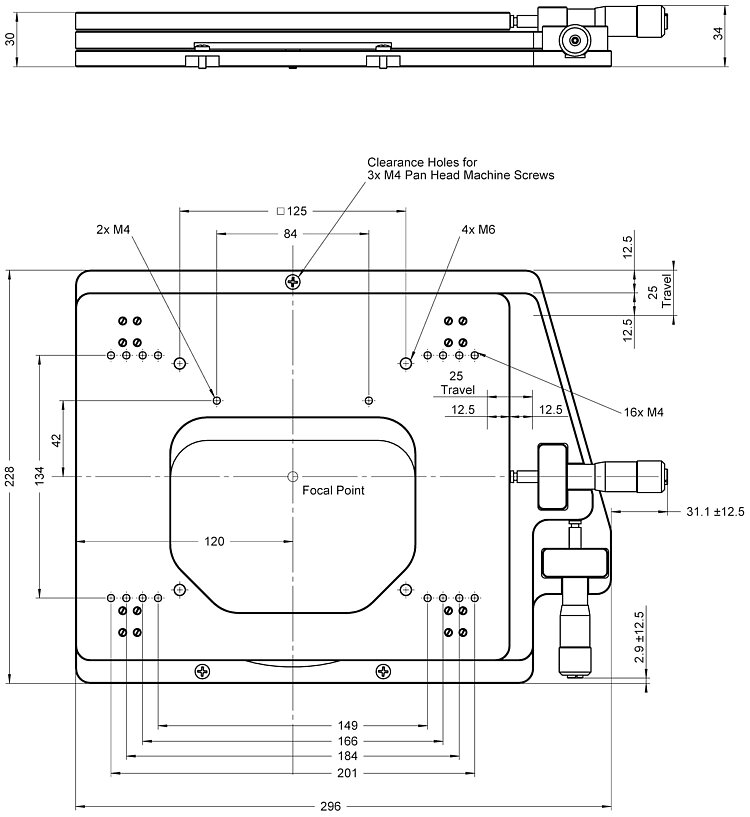

M-545.2MZ: dimensions in mm

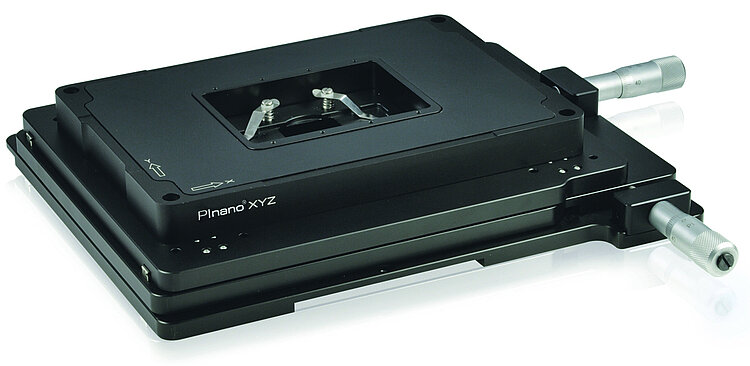

P-545 PInano® piezo positioner on M-545 XY stage
M-545 Microscope XY Stage
제품 설명
사양
다운로드
견적 / 주문
Standard-class, manual microscope XY stage
Rough adjusting for piezo nanopositioners from PI as well as manual positioning of specimen holders. Supports optimum scanning and settling behavior.
Micrometer screw or stepper motor drive
The M-545 XY stage can also be equipped with drives from the M-229 series (all models except M-545.2MZ). Complete packages with two stepper motor drives, matching controller, and joystick, are available under the product numbers M-545.USG respectively M-545.USC.
Suitable for microscopes from a large number of manufacturers
For inverted microscopes from Nikon (TI), Zeiss (Axio Observer), Leica (DMI), and Olympus (IX2, IX3). Versions for other microscopes on request.
Can be combined with numerous PI nanopositioners
It is possible to mount piezo nanopositioners from the P-545 PInano® and P-541 / P-542 series onto the platform of the M-545. Adapter plates from PI are available for combining with other piezo nanopositioners.
Specifications
Specifications
| M-545.2M | Unit | Tolerance |
|---|---|---|---|
Active axes | X, Y | ||
Motion and positioning | |||
Travel range | 25 mm × 25 mm | ||
Minimum incremental motion | 1 | µm | typ. |
Minimum incremental motion with M-229 linear actuators* | 1 | µm | typ. |
Velocity with M-229 linear actuators* | 1.5 | mm/s | max. |
Mechanical properties | |||
Load capacity | 50 | N | max. |
Preload | 10 | N | |
Miscellaneous | |||
Material | Aluminum, stainless steel | ||
Mass | 4 | kg | ±5 % |
* Optional (for all models except M-545.2MZ)
Ask about customized versions.
