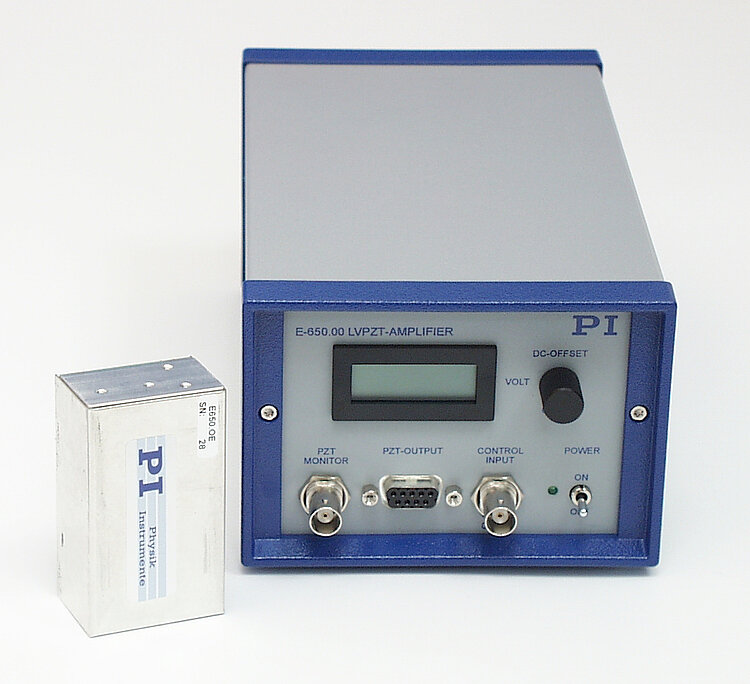

E-650 Piezo Amplifier for Multilayer Bending Actuators
Benchtop Device and OEM Module
- Specifically designed for operating dynamic multilayer piezo bending actuators without position sensor
- Benchtop and OEM versions
- Peak power to 18 W
- Voltage display
E-650 Piezo Amplifier for Multilayer Bending Actuators
제품 설명
사양
다운로드
견적 / 주문
Specifications
Specifications
Amplifier | E-650.00 | E-650.OE |
---|---|---|
Input voltage range | 0 to 10 V | 0 to 10 V |
Output voltage | 0 to 60 V, additionally 60 V fixed voltage | 0 to 60 V, additionally 60 V fixed voltage |
Peak power | 18 W | 8 W |
Average output power | 6 W | 4 W |
Peak current, <5 ms | 300 mA | 140 mA |
Average output current >5 ms | 100 mA | 60 mA |
Current limitation | Short-circuit proof | Short-circuit proof |
Voltage gain | 6 ±0.1 | 6 ±0.1 |
Amplifier bandwidth, large signal | 600 Hz with 1000 nF load, 6 kHz without load | 200 Hz with 1000 nF load, 3 kHz without load |
Input impedance | 100 kΩ | 100 kΩ |
Downloads
Product Note
Product Note
User Manual PZ97
E-650 Piezo Amplifier for Bender Actuators
버전 / 날짜
1.1.0 2019-10-04
pdf - 304 KB
영어
Datasheet
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
E-650.00

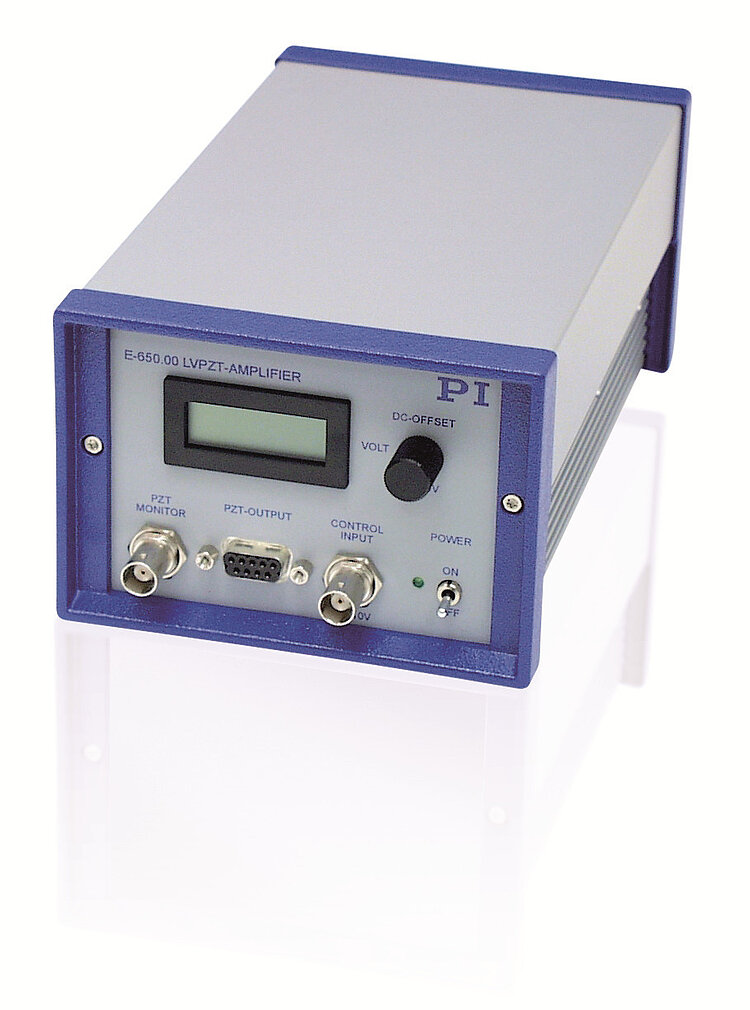

Piezo amplifier for bending actuators, 0 to 60 V, benchtop device
E-650.OE
Piezo amplifier module for bending actuators, 0 to 60 V, OEM module
