PL112.11
PICMA® multilayer piezo bending actuator, 200 µm travel range, 18 mm × 9.60 mm × 0.67 mm, stranded wires

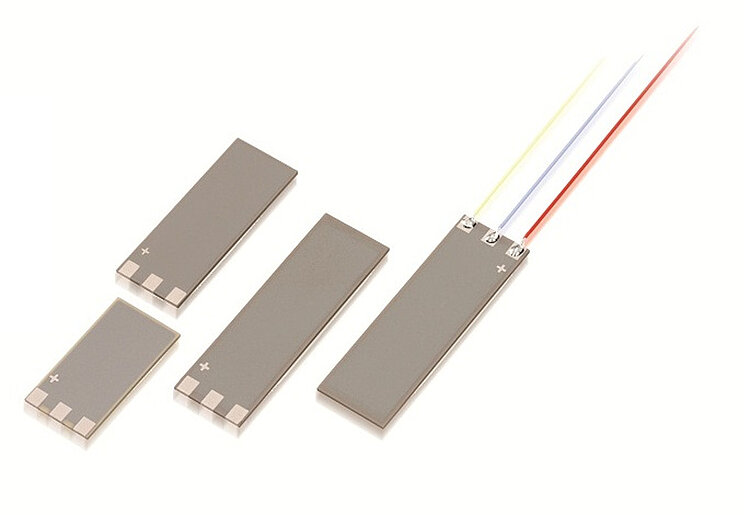

PL112 – PL140 PICMA® Bender
All-Ceramic Bending Actuators with High Displacement
- Displacement to 2 mm
- Fast response in the ms range
- Nanometer resolution
- Low operating voltage
- Operating temperature up to 150°C
- UHV-compatible to 10-9 hPa

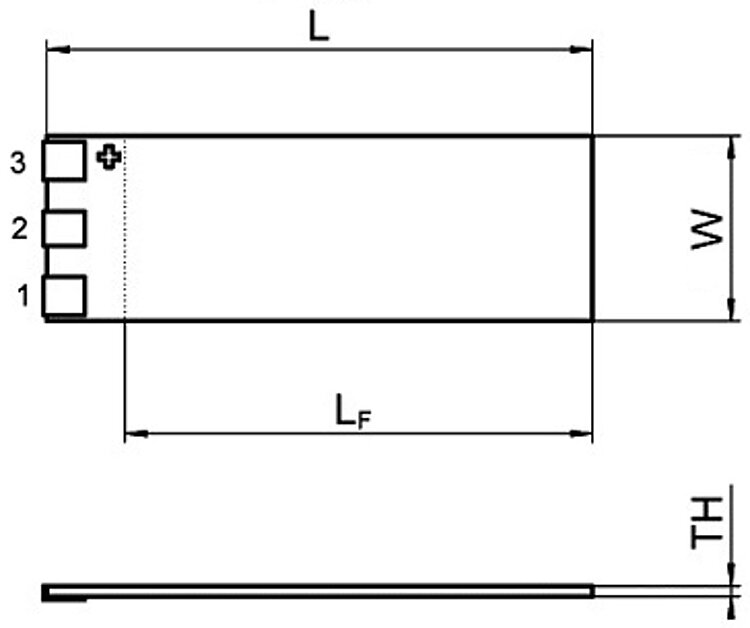

PL112.10 – PL140.10. L, L, W, TH, see data table.

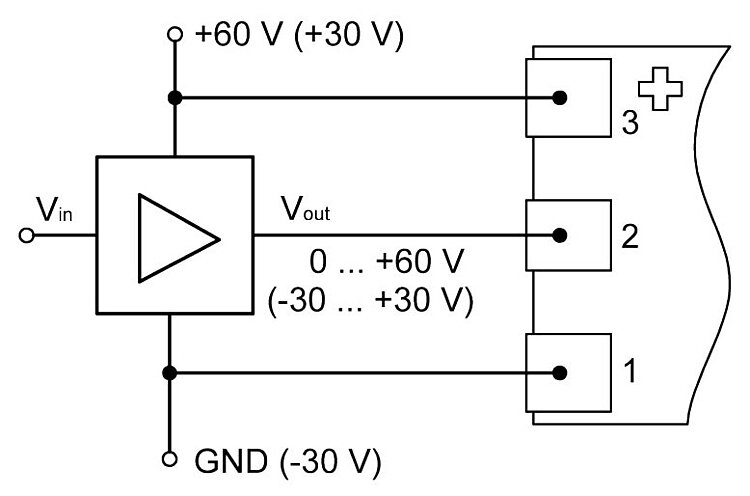

PICMA® Bender actuators have differential control.

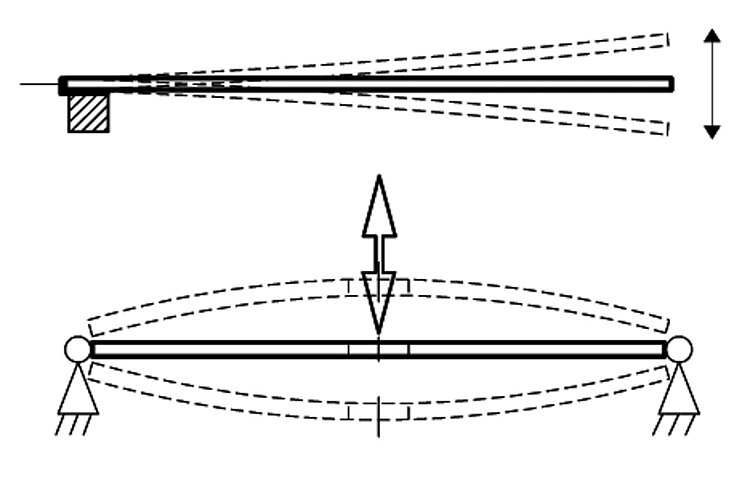

Displacement of the PICMA® bending actuators: Clamped on one side (top) and on both sides (bottom).

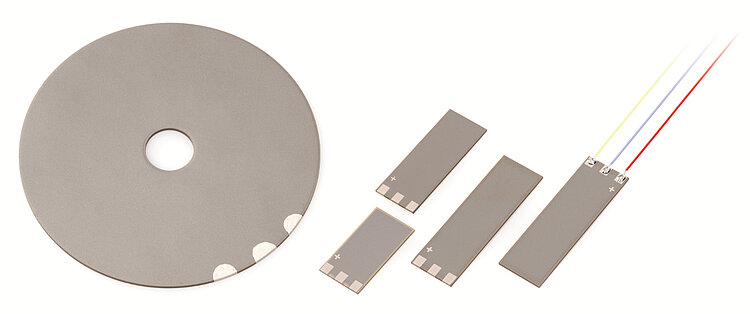

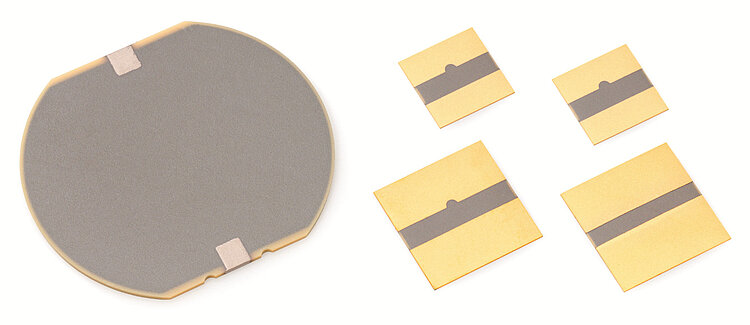

Multilayer contracting plates can be manufactured in a variety of shapes, e.g., square- or disc-shaped, and are available on request. These plates can be applied for example, to metal or silicon substrates, in order to realize bender or pump elements with low control voltages.
Multilayer contracting plates can be manufactured in a variety of shapes, e.g., square- or disc-shaped, and are available on request. These plates can be applied for example, to metal or silicon substrates, in order to realize bender or pump elements with low control voltages.
PL112 – PL140 PICMA® Bender
제품 설명
사양
다운로드
견적 / 주문
PICMA® multilayer bender elements with high reliability
Operating voltage 0 to 60 V. Bidirectional displacement, bimorph design. Ceramic insulation, polymer free. UHV-compatible to 10-9 hPa, no outgassing, high bakeout temperature. Reliable even under extreme conditions.
Application fields
Industry and research, vacuum. For medical technology, laser technology, sensor technology, automation tasks, pneumatic valves.
Specifications
Specifications
PL112.10 | PL122.10 | PL127.10 | PL128.10 | PL140.10 | Unit | Tolerance | |
|---|---|---|---|---|---|---|---|
Operating voltage | 0 to 60 (±30) | 0 to 60 (±30) | 0 to 60 (±30) | 0 to 60 (±30) | 0 to 60 (±30) | V | |
Displacement | ±100 | ±310 | ±450 | ±450 | ±1000 | µm | ±20 % |
Remaining length LF | 12 | 22 | 27 | 28 | 40 | mm | |
Length L | 18 | 25 | 31 | 36 | 45 | mm | ±0.5 mm |
Width W | 9.60 ±0.2 | 9.60 ±0.2 | 9.60 ±0.2 | 6.15 ±0.1 | 11.00 ±0.2 | mm | |
Height TH | 0.67 | 0.67 | 0.67 | 0.67 | 0.55 | mm | ±0.1 mm |
Blocking force | ±2.1 | ±1.25 | ±1.1 | ±0.55 | ±0.5 | N | ±20 % |
Electrical capacitance | 2 × 1.1 | 2 × 2.5 | 2 × 3.4 | 2 × 1.2 | 2 × 4.1 | µF | ±20 % |
Resonant frequency | 1800 | 600 | 420 | 360 | 160 | Hz | ±20 % |
Operating temperature | -20 to 150 | -20 to 85 | -20 to 85 | -20 to 150 | -20 to 85 | °C | |
Piezo ceramic | PIC252 | PIC251 | PIC251 | PIC252 | PIC251 | ||
Recommended electronics | E-650, E-651 • E-614 | E-650, E-651 • E-614 | E-650, E-651 • E-614 | E-650, E-651 • E-614 | E-650, E-651 • E-614 |
Electrical capacitance: Measured at 1 Vpp, 1 kHz, RT, clamped on one side with remaining length LF, no load.
Resonant frequency: Measured at 1 Vpp, clamped on one side with remaining length LF, no load.
Standard connections: Solderable contacts (PL1xx.10) or PTFE-insulated stranded wires, UHV compatible, 100 mm, AWG 32, Ø 0.49 mm (PL1xx.11).
Recommended mounting: Epoxy resin adhesive.
All specifications depend on actual clamping conditions and mechanical load applied.
Custom designs or different specifications on request.
Quote / Order
Ask for a free quote on quantities required, prices, and lead times or describe your desired modification.
PICMA® Bender actuators with PTFE-insulated stranded wires
PL122.11
PICMA® multilayer piezo bending actuator, 620 µm travel range, 25 mm × 9.60 mm × 0.67 mm, stranded wires
PL127.11
PICMA® multilayer piezo bending actuator, 900 µm travel range, 31 mm × 9.60 mm × 0.67 mm, stranded wires
PL128.11
PICMA® multilayer piezo bending actuator, 900 µm travel range, 36 mm × 6.15 mm × 0.67 mm, stranded wires
PL140.11
PICMA® multilayer piezo bending actuator, 2000 µm travel range, 45 mm × 11.00 mm × 0.55 mm, stranded wires
PICMA® Bender actuators
PL112.10
PICMA® multilayer piezo bending actuator, 200 µm travel range, 18 mm × 9.60 mm × 0.67 mm
PL122.10
PICMA® multilayer piezo bending actuator, 620 µm travel range, 25 mm × 9.60 mm × 0.67 mm
PL127.10
PICMA® multilayer piezo bending actuator, 900 µm travel range, 31 mm × 9.60 mm × 0.67 mm
PL128.10
PICMA® multilayer piezo bending actuator, 900 µm travel range, 36 mm × 6.15 mm × 0.67 mm
PL140.10
PICMA® multilayer piezo bending actuator, 2000 µm travel range, 45 mm × 11.00 mm × 0.55 mm
