PD410.10
Round PICMA® multilayer bending actuator; PICMA® Bender piezo actuator drive; ±240 µm travel range (open loop); vacuum-compatible to 10⁻⁹ hPa; solderable contacts

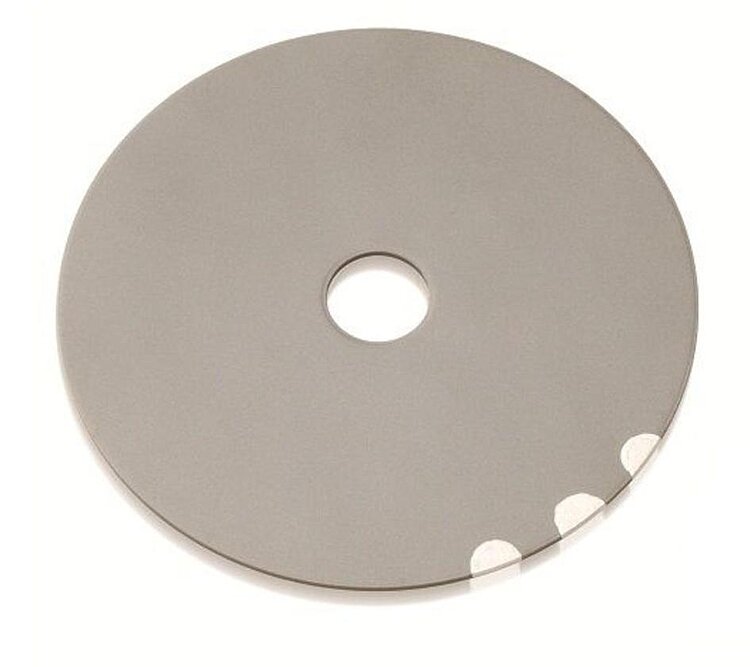

PD410 Round PICMA® Multilayer Bender Actuators
All-Ceramic Bending Actuators with High Displacement

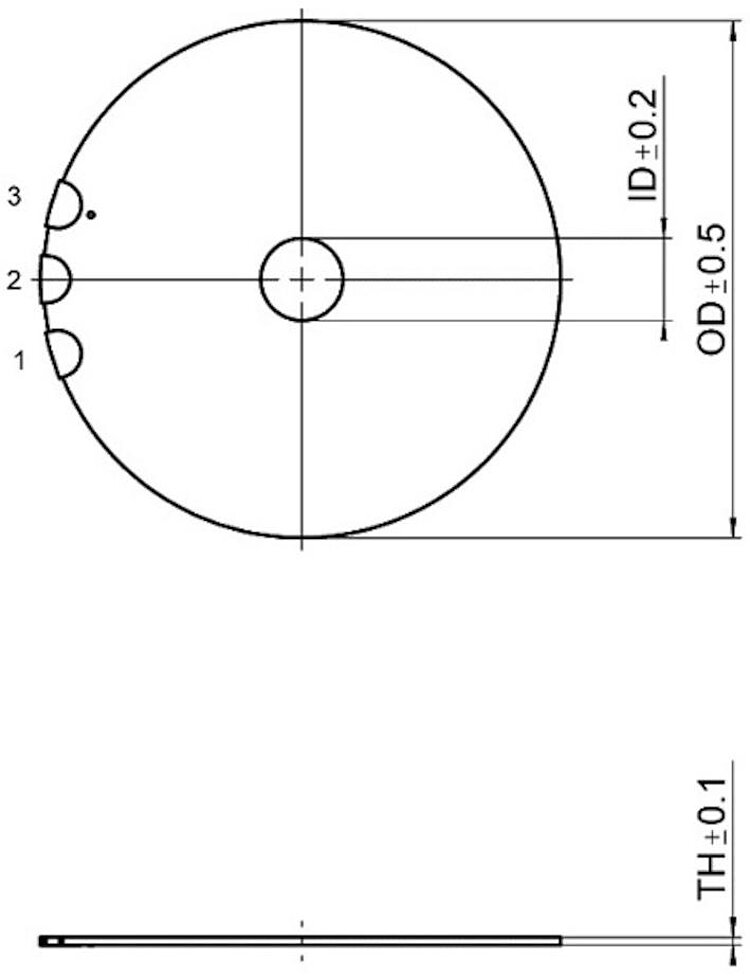

PD410 round PICMA® Bender Piezo Actuator, dimensions in mm. OD=44 mm, ID=7 mm, TH=0.65 mm.
PD410 Round PICMA® Multilayer Bender Actuators
제품 설명
사양
다운로드
견적 / 주문
PICMA® multilayer bender elements with high reliability
Operating voltage 0 to 60 V. Bidirectional displacement, bimorph design. Ceramic insulation, polymer free. UHV-compatible to 10-9 hPa, no outgassing, high bakeout temperature. Reliable even under extreme conditions.
Fields of application
Industry and research, vacuum. For medical technology, laser technology, sensor technology, automation tasks, pneumatic valves.
Specifications
Specifications
| Motion | PD410.10 | PD410.11 | Tolerance |
|---|---|---|---|
| Displacement | ± 240 µm | ± 240 µm | ±20 % |
| Drive Properties | PD410.10 | PD410.11 | Tolerance |
| Actuator type | Bending actuator | Bending actuator | |
| Drive type | PICMA® Bender | PICMA® Bender | |
| Operating voltage | 0 to 60 (±30) V | 0 to 60 (±30) V | |
| Electrical capacitance | 2 × 9.5 µF | 2 × 9.5 µF | ±20 % |
| Mechanical Properties | PD410.10 | PD410.11 | Tolerance |
| Resonant frequency, unloaded | 1000 Hz | 1000 Hz | ±20 % |
| Blocking force | ± 16 N | ± 16 N | ±20 % |
| Piezo material | PIC252 | PIC252 | |
| Miscellaneous | PD410.10 | PD410.11 | Tolerance |
| Operating temperature range | -20 to 150 °C | -20 to 150 °C | |
| Vacuum class | 10⁻⁹ hPa | 10⁻⁹ hPa | |
| Connector | Solderable contacts | Stranded wires, PTFE isolated, AWG 32, Ø 0.49 mm | |

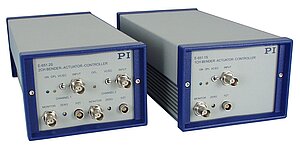

| Recommended controllers / drivers | E-650, E-651 • E-614 | E-650, E-651 • E-614 | |
| Cable length | 0.1 m |
Electrical capacitance: Measured at 1 Vpp, 1 kHz, RT.
Resonant frequency, unloaded: Measured at 1 Vpp restraint with rotatable mounting on the outer circumference.
Recommended mounting: Epoxy resin adhesive.
All specifications depend on actual clamping conditions and mechanical load applied.
Custom designs or different specifications on request.
